Description

Application: For Use In Office Buildings, Shopping Center And Other Commercial Buildings

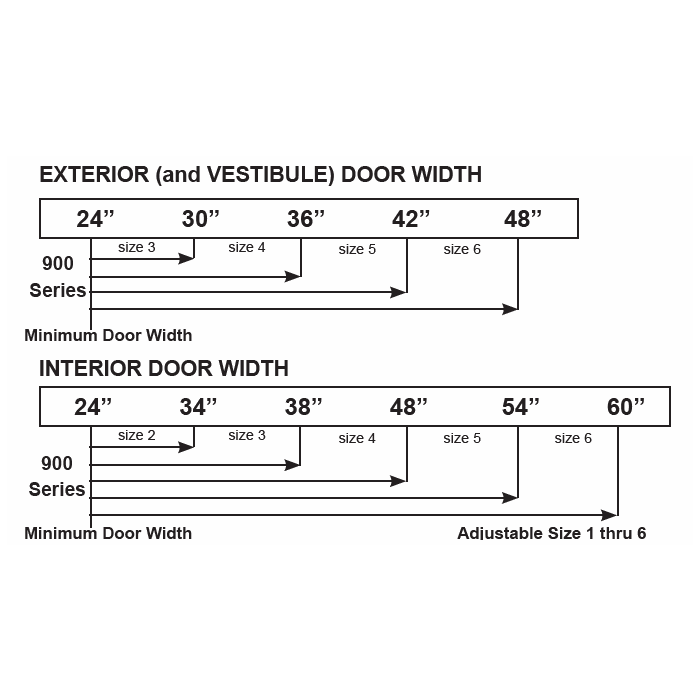

Spring Tension Size: Non-Sized 1 thru 6. (FACTORY PRESET SIZE 3)

Product Description & Features:

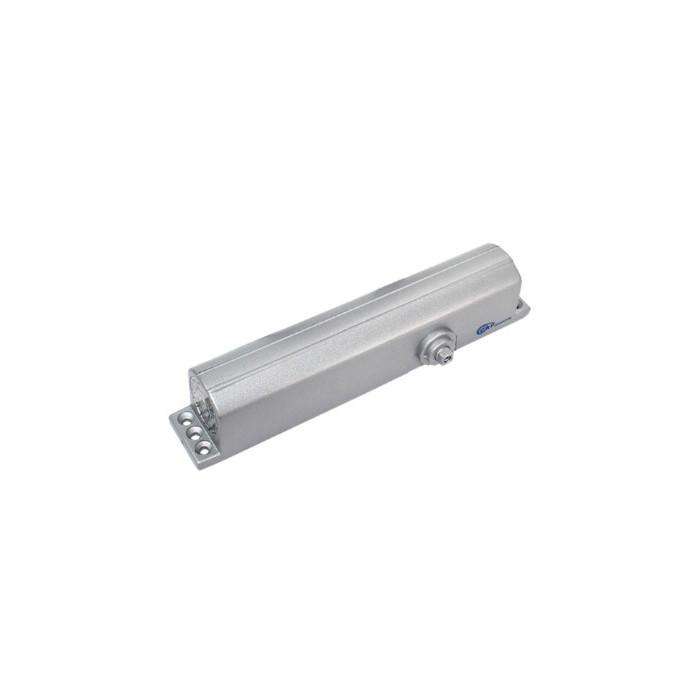

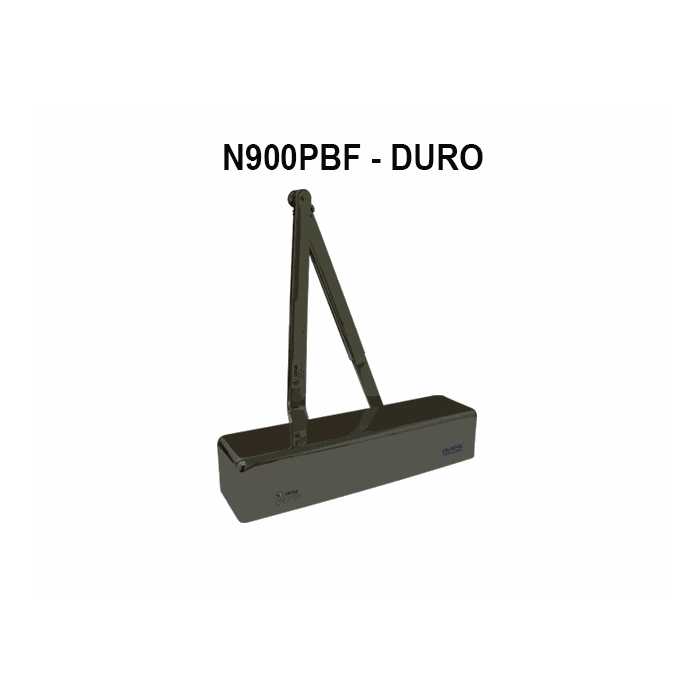

• Hydraulic Door Closer
• Universal application. Non-handed for standard, top-jamb or parallel arm installation
• Barrier free (BF) Meets ADA regulation.
• Engineered with reduced spring power to provide easier opening for handicapped or elderly.
• Door Weights: 30-260 lbs. (All Models)
• Standard adjustable back-check function
• Adjustable closing and latching speed by two separate regulating valves
• Interior & Exterior Function
• Standard Full Plastic Cover

Certifications:
• ANSI 156.4 Grade1: UL listed for fire door assemblies
• Conforms To Standards UL10C and UBC7-2-1997

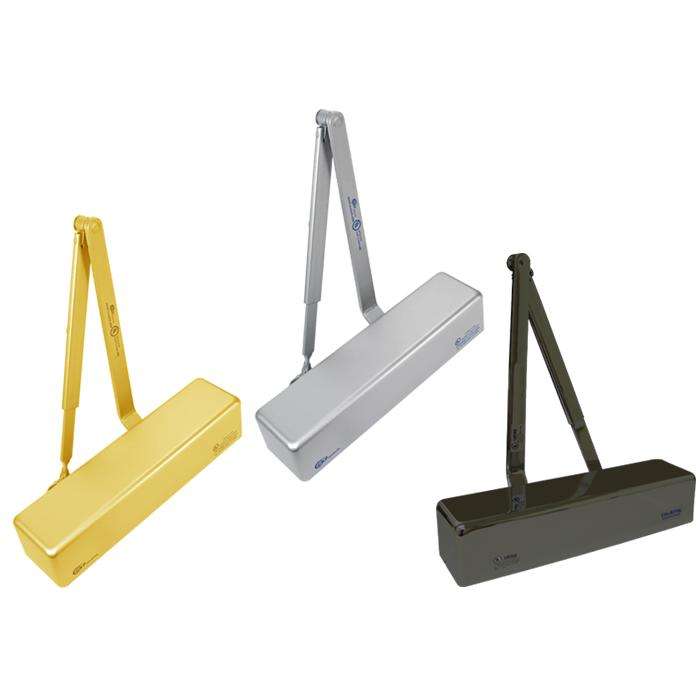

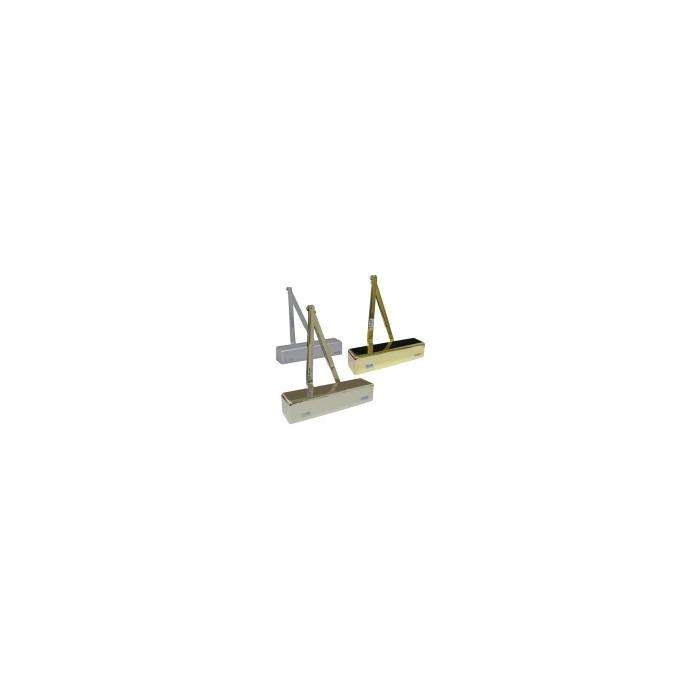

Finishes:

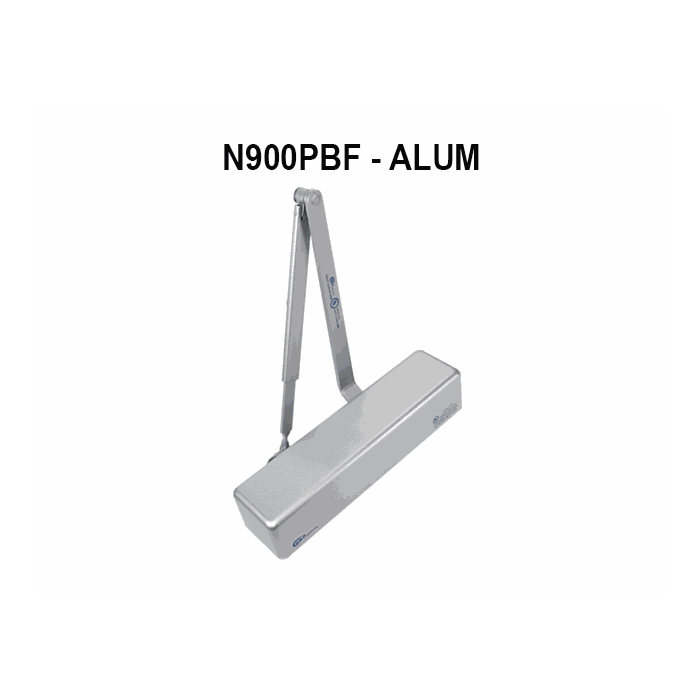

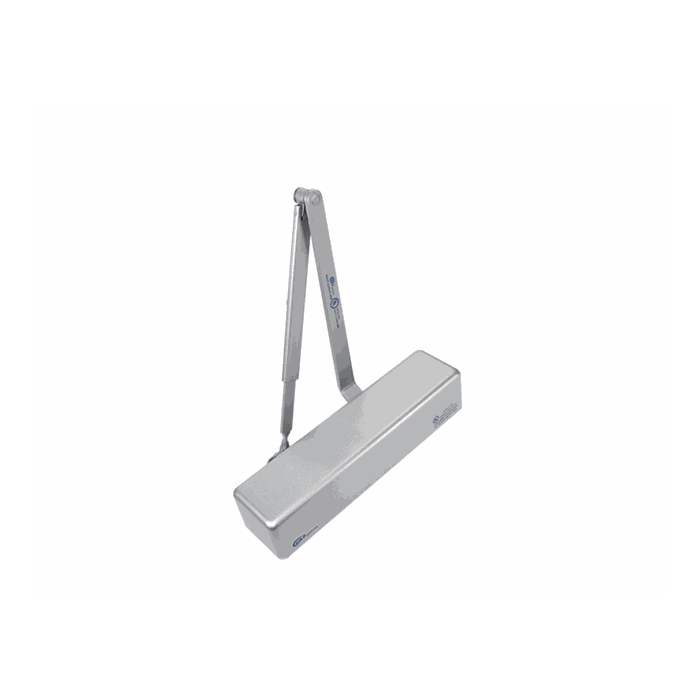

• Aluminum
• Dark Bronze
• US26 – Polished Chrome
• US26D – Brushed Chrome

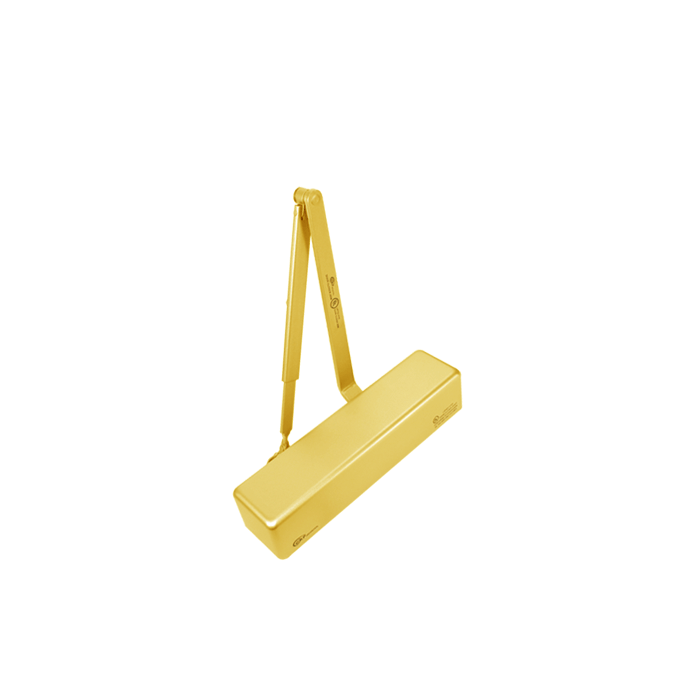

• US3 – Polished Brass

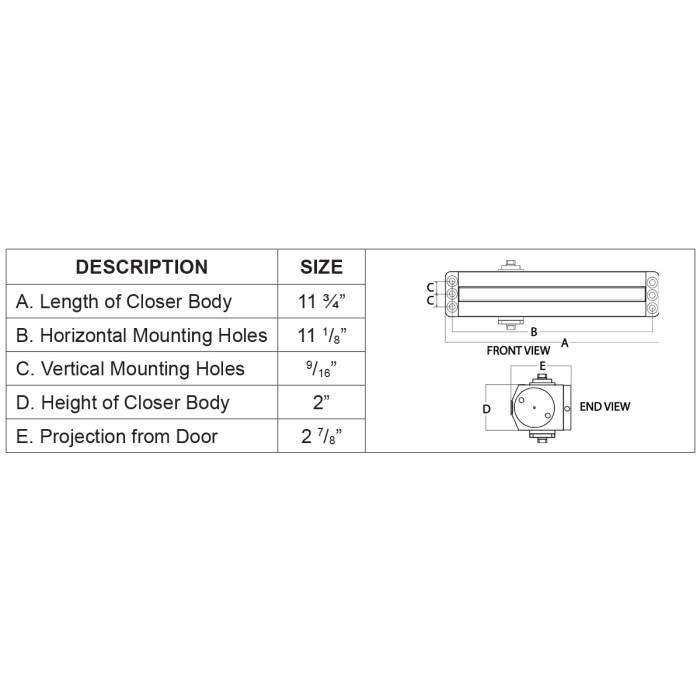

Closer Dimensions:
• Length of Closer Body: 11-3/4″
• Horizontal Mounting Holes: 11-1/8″
• Vertical Mounting Holes: 9/16″
• Width of Closer Body: 2″
• Projection from Door: 2-7/8″

Cross References:
• CAL-ROYAL – 900
• CORBIN – DC3200
• DOR-O-MATIC – SC80FC
• DORMA – 8600FC
• LCN – 1460FC
• HAGER – 5200
• RUSSWIN – DC3200
• SARGENT – 1431
• YALE – 3501 (The data on this chart represents our judgement of which are most similar. Since no product is exactly alike the information has been obtained from trade sources. It is not guaranteed nor represented that any specific product exactly equals any other product. Door closer body size may be different .)
