Description

Application: The 8600 Series is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors typically used in commercial construction.

Product Description & Features:
• Grade 1 Surface Applied Door Closers

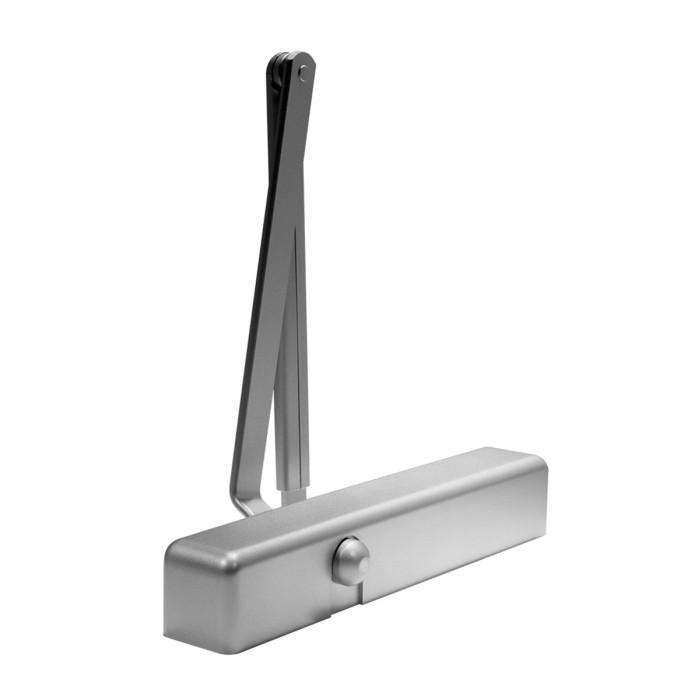

• The 8600 door closer series is a non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Spring Tension Size:
• 8616 closers available for interior and exterior doors.
• Fully Adjustable Size 1-6, Meets barrier-free requirements.

Technical Details:
• Non-handed for regular, top jamb and parallel arm applications.
• Adjustable backcheck standard. Controls opening motion during abusive or abrupt opening.
• POS backcheck positioningM valve (standard) maintains Meffective backcheck range on parallel arm applications. Valve accessible with closer installed.
• Optional delayed action adjustable with a separate independent valve.
• Delays door closing to allow unobstructed passage through the opening.

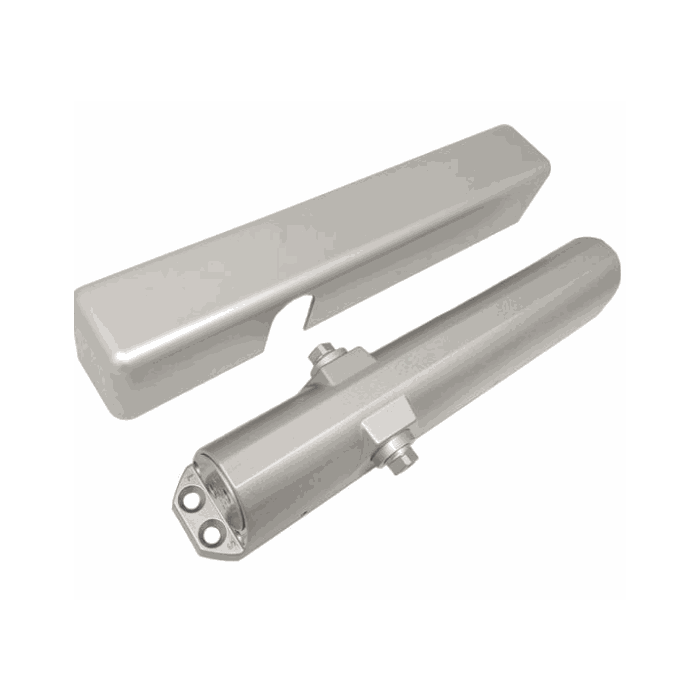

• Slim plastic cover standard.
• Full plastic cover
• Designed to minimize change in closing speed during severe temperature changes.
• Aesthetically pleasing and easy to adjust steel flat form arm assembly.
• Full complement of optional arms, plates, and brackets available for special applications.
• SNB1 sex nuts and machine screws for 1-3/4″ thick doors included standard.
• No slip, octagonal bore spring adjustment standard.
• (DPK89) for steel door and frame applications or selftapping screws (TPK89) for aluminum door and frame applications.

Standard Sprayed Finishes:
• 689 – Aluminum
• 695 – Dark Bronze

Certifications:
• ANSI/BHMA
• A156.4 Grade 1 certified.
• UL and CUL listed.
• Meets UL10C for positive pressure.
• Meets ANSI/BHMA A117.1 and
• ADA for barrier-free accessibility.
• CSFM approved

Specification:
• The architectural grade 8600 Series is a non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. Adjustable hydraulic backcheck will take effect at approximately 70. The 8600 has two independent, noncritical adjustment valves to control sweep and latch closing speeds. The backcheck positioning valve assures an effective ANSI backcheck range on parallel arm applications. All closers to have field adjustable spring power from size 1-6 and meet barrier-free requirements. Closers to have a slim plastic cover and a wide range of arm options. All 8600 fully adjustable spring force door closers to include an integral design to positively stop adjustment of the spring at the minimum and maximum spring force settings.

Warranty:
• For details, refer to DORMA Limited Warranty on our website at go.dorma.com/terms.

REDUCED OPENING FORCE INSTALLATIONS CAUTION:
• Manual door closers, including those certified to meet ANSI/BHMA A156.4, when installed and adjusted to conform to ADA or other reduced opening force requirements, may not provide sufficient power to reliably close and latch a door.
