Description

Application: Designed for Use with 1-3/4″ Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors

Product Description & Features:
• “Soft-Touch” Smooth Action Push-Pad
• Can Be Cut to Size
• Standard Hex Key Dogging

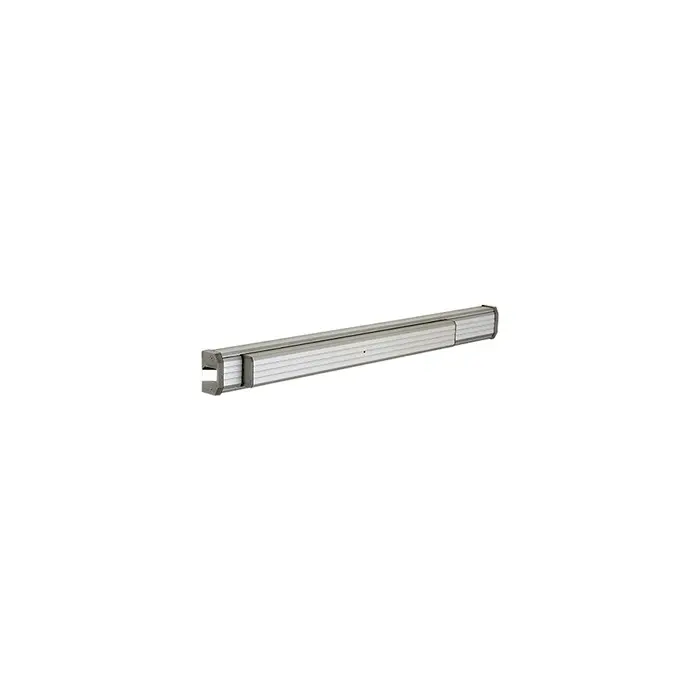

• The 1200 Series touch pad with “Soft-Touch” insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism.
• Overall projection is only 2-7/8″ (73 mm) from the door surface, and mounting hardware is concealed.
• Active outside trim and other panic accessories are available.

Specifications:
• Stocked in 36″ (914 mm) Width
• Surface Mounted Roller Strike Standard
• Requires Rim Cylinder for Keyed Entry

Materials:
• Base and Push-Pad: Extruded Aluminum
• Mechanical Components: Stainless and Hardened, Plated Steel
• Latch and Strikes: Sintered Steel
• Metal End Caps
• Handed: Left Hand Reverse Bevel (LHRB) or Right Hand Reverse Bevel (RHRB)

Finish:
• 628 – Aluminum
• 313 – Dark Bronze
