Description

Application: Designed for use on single or pairs of doors. It is suited for medium and high traffic areas. Available on 190, 350, and 500 Standard Entrances, 350/500 IR, 350/500 Heavy Wall-TM, 350/500 Heavy Wall-TM IR Entrances, and AATM 250/425 Thermal Entrances.

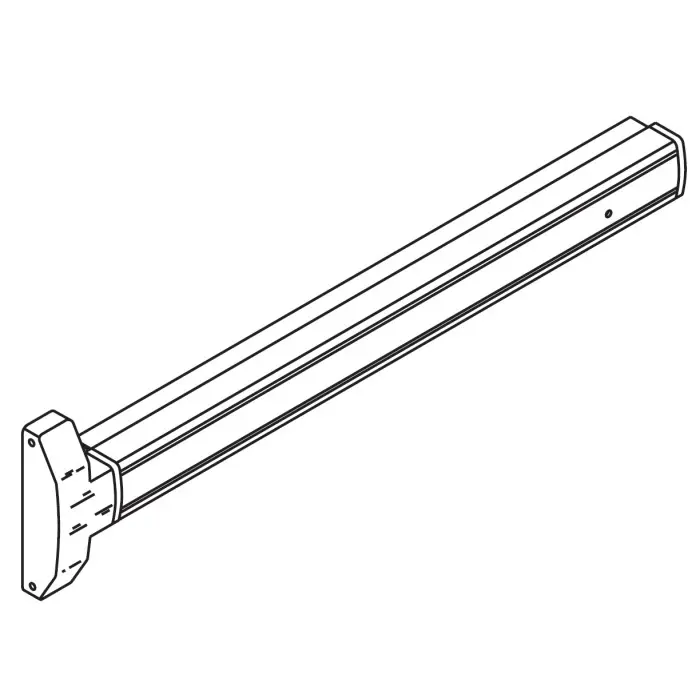

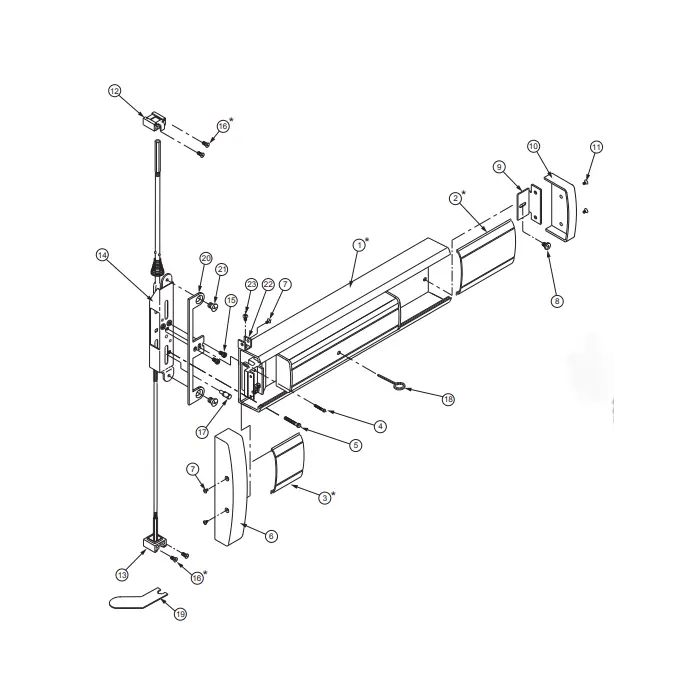

Product Description & Features: The Kawneer 1686 Concealed Vertical Rod exit device is an exclusive to Kawneer customers. This exit device is UL Listed, is Hurricane Impact tested and Florida Product Approved. This device has the feature of rod adjustment without panel removal. Depression of the touch bar on the interior retracts the concealed rods from the transom bar and the threshold, allowing egress from the building. Upon closing, the top rod is released and frees the bottom rod to engage the threshold. The door is now re-locked. A quick single point “dogging” feature in the housing deactivates the device and permits unrestricted traffic flow. Vertical rods and latch mechanisms are concealed in the vertical door stile. A 1-5/32″ diameter mortised 5-pin cylinder with trim is required.

Dimensions:
• Center line of touch bar to bottom of door 40″ (1,016)
• Height 3-3/16″ (81)
• Projection 2-3/4″ (70)
• Projection when dogged 1-13/16″ (46)

Finish:
• Clear – 17
• Dark Bronze – 40

Optional:
• Optional: 1686 EL version for access control applications. Cylinder dogging in lieu of hex key dogging.
