Description

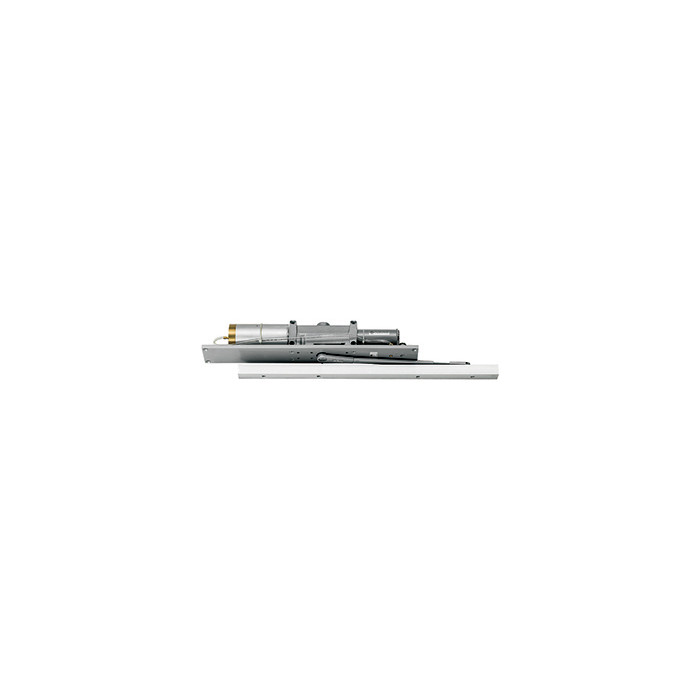

• The 2610 Auto Eequalizer is LCNs pneumatically powered Multi-Door solution. This low-energy power operator provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Closer Size: 2613 – Exterior Door Width – Size 3 (30″); Interior (30″ – 38″)

Body Construction: -Cast Iron Body -Full Complement Bearing -1-1/2″ Diameter Piston -11/16″ Diameter Double Heat Treated -Pinion Journal

Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Concealed arm and track in door top rail
• Consult factory for all pivot mounted installations.
• Multi-door solution utilizing 10,000,000 cycle heavy duty door closer
• Requires control box with integral compressor or control box using auxiliary air supply. See CONTROL BOX pages 28-29 and actuators and accessories, pages 115-131
• Guard rails/safety mats not required
• Fluid: All Weather Fluid
• Handing: Handed, LH or RH
• Warranty: 2 years
• Fasteners: Wood and machine screws
• Mounting: Concealed, in frame
• Arms: Single lever arm, mounting/finish plate, standard track
• Finish/Color/Powder Coat: Aluminum (689)

Certifications: Grade 1 – ANSI A117.1, A156.19 UL228, ADA, 100 Hour Salt Spray, Meets BAA – Buy American Act

Butt Hinges: -Should not exceed 5″ (127 mm) in width -Auxiliary Stop -Recommended -Head Frame -Minimum 4″ (102 mm) x 4″ for hollow metal or aluminum tube construction

Top Rail: -1-3/8″ (35 mm) mortise required -5/16″ (8 mm) cutout required at top of the door, push side only

System Diagram: See AUTOMATIC OPERATORS section pages 8-9 for typical systemwiring, and pages 28-29 for electrical and pneumatic data for control boxes

Maximum opening:-Butt hinge template allows 90 power opening and 160 manual opening -Please note that many track style door closers are capable of allowing 180 of door swing -Track style closers are at their weakest closing force at 180-Consult factory for applications where exterior or large/heavy door must swing 180-Consult factory for all pivot mounted installations

Closer will be shipped with: – 2610-3077T Standard arm (Handed) – 2610-3034 Track roller – 2610-3038 Standard track – Wood & machine screw pack
