Description

Application: The 4010 Smoothee is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Spring Size:
• Adjustable spring sizes 1-5 or 6 only
• Sized cylinders for interior doors to 5’0″ and exterior doors to 4’0″.
• Non-sized cylinder (4011) adjustable for interior doors to 4-6 and exterior doors to 3-6.

4010 Series Shipped with:
• 4011(6)-3071 Cast Iron Cylinder Assembly
• 4010-3077 Standard arm
• 4010-72 Standard plastic cover
• Fasteners: Self reaming and tapping screws (SRT)

Certifications:
• Grade 1 – ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA – Buy American Act
• Closer meets ADA requirements.
• UL and cUL listed with regular or fusible link arms for self-closing doors

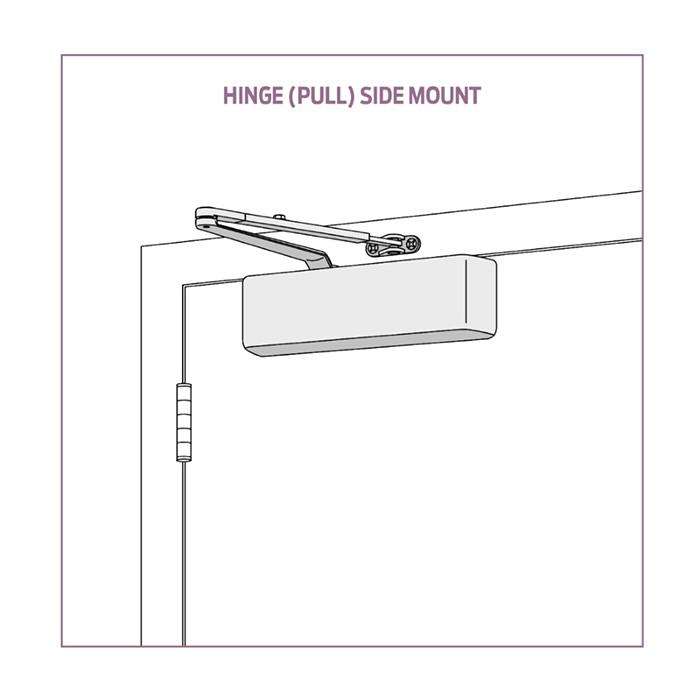

Mounting: Hinge (Pull side)

Body construction:
• Cast iron cylinder
• Full-complement bearing
• 1-1/2 diameter piston
• 11/16″ diameter double heat treated pinion journal

Quality and Durability:
• All-weather fluid
• LCN patented Green Dial spring force indicator
• 30-year warranty

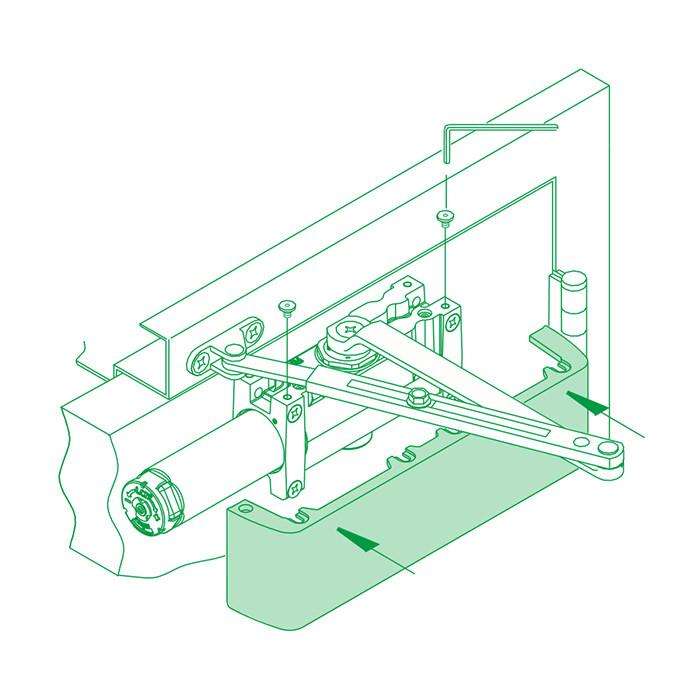

Installation:
• Application specific handed (LH or RH)
• Peel-n-stick template

Cover:Â
• Plastic, standard ƒ
• Metal, optional

Finishes/Colors:
• 689 – Aluminum

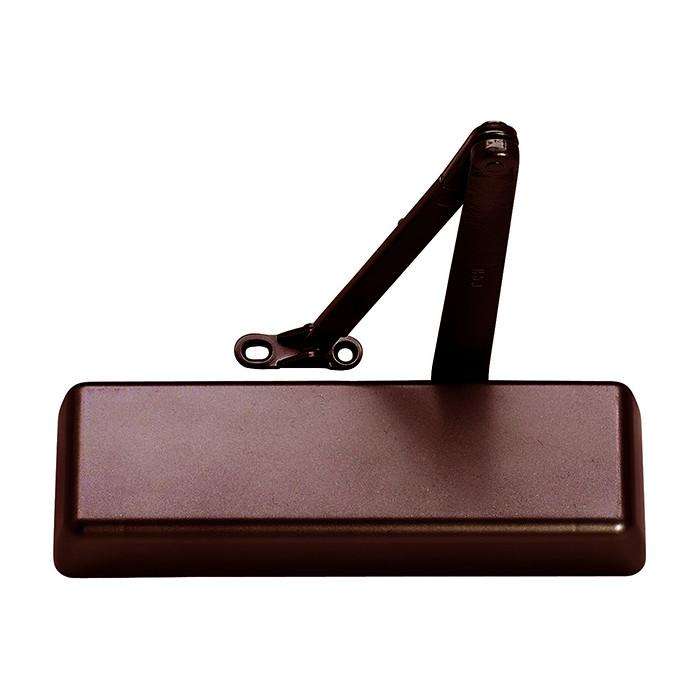

• 695 – Dark Bronze
