Description

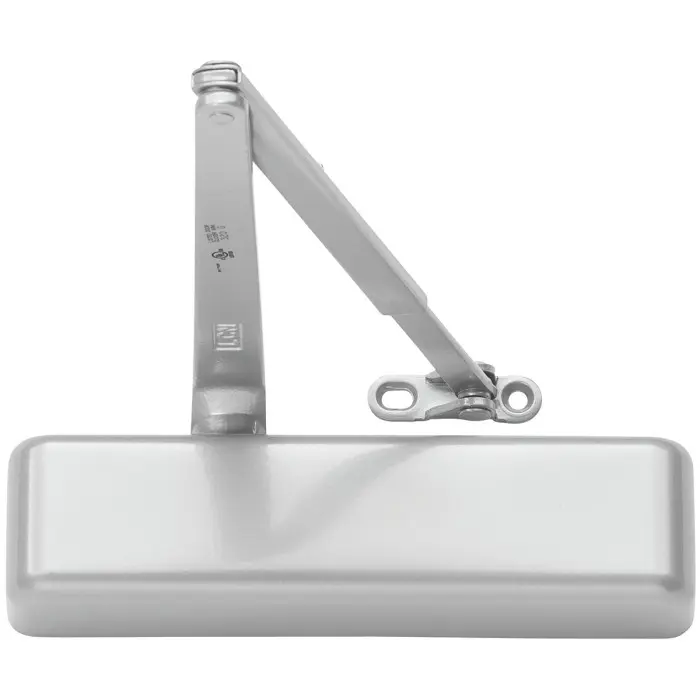

Application: The 4030 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

Spring Size:
• Non-sized 4031 cylinder is adjustable from sizes 1 to 4 and is shipped set to size 3
• 4031 cylinder for exterior doors to 36″ (914 mm) and interior doors to 48″ (1219 mm)

4030 Series Shipped with:
• 4031-3071 – Cast Iron Cylinder Assembly (Adjustable 1-5)
• 4030-3077 Forged Regular Arm (Non-Handed)
• 4030-72MC – Metal Cover
• Fasteners: Self reaming and tapping screws (SRT)

Certifactions:
• Grade 1 – ANSI A156.4, UL10C, ADA, 100 Hour Salt Spray, Meets BAA – Buy American Act
• Closer meets ADA requirements
• UL and cUL listed for Self-closing doors without hold-open

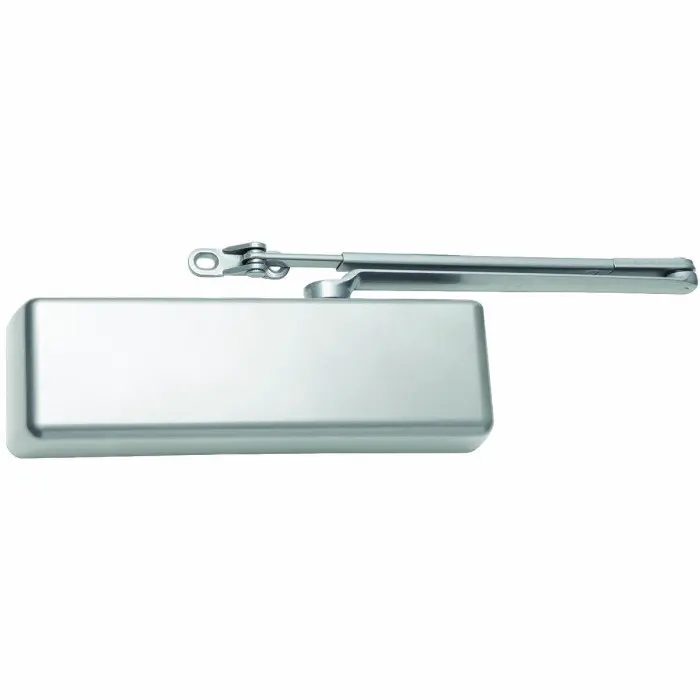

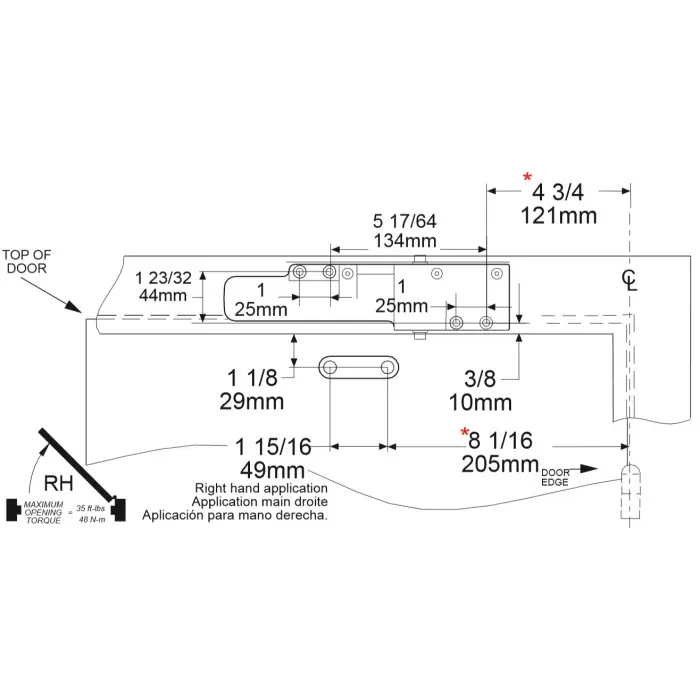

Mounting: Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors

Body Construction:
• Cast Iron Body
• Forged Steel Main Arm
• 1/2″ Diametet Heat Treated Steel Pinion

Fluid: All Weather Fluid

Finishes/Colors:
• 689 – Aluminum ƒ
• 695 – Dark bronze
