Description

Application: The 4040XP Series is LCN’s most durable surface-mounted heavy-duty closer, designed for the most demanding high-use-and-abuse applications.

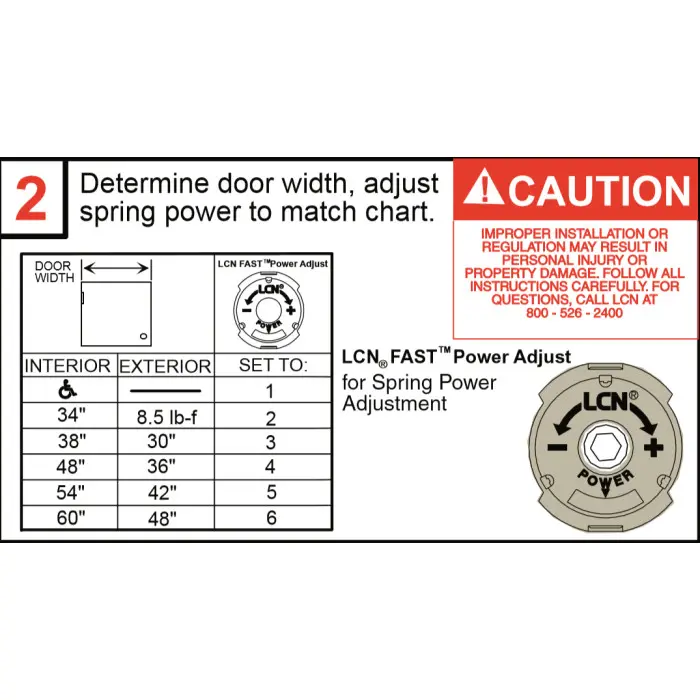

Spring Size: Adjustable from Size 1 through size 6 (Shipped as Factory Set Size 3)

Function: Non-Hold Open – NHO – RW

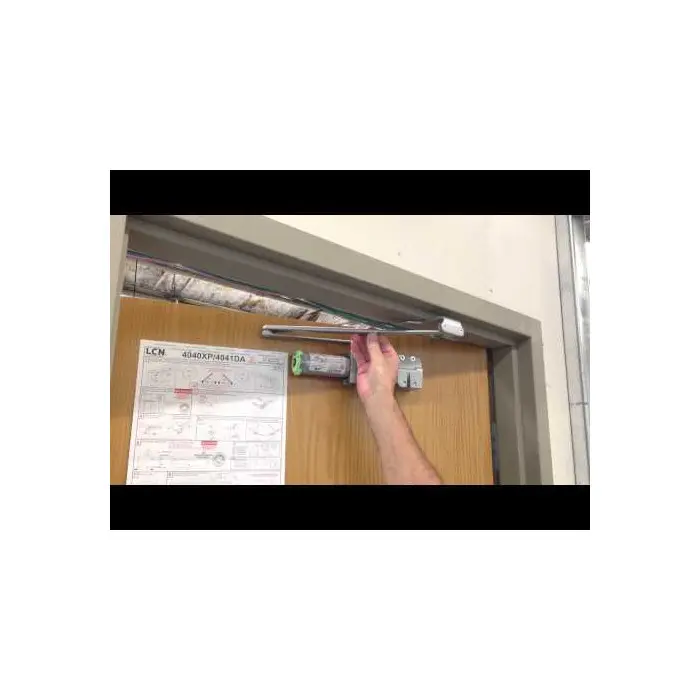

Mounting/Arm Options: The 4040XP – RW/PA Series mounts push side parallel arm. Visit the 4040XP Series catalog pages for mounting details, arm options and accessories.

Body construction:
– Cast iron cylinder with full-complement bearing
– 3/4″ diameter piston
– Double-heat treated steel pinion journal

Quality and durability:
– All-weather Liquid X fluid
– LCN patented Green Dial spring force indicator
– 30-year warranty

Installation:
– Universal non-handed
– Peel-n-stick template and snap-on cover

Powder Coat Finishes:
• Aluminum – 689
• Black – 693
• Brass – 696
• Dark Bronze – 695

Product Description & Features:
• 44% increased bearing load capacity
• Widest bearing ever- at 5/8″
• Stronger pinion teeth
• New V-shield™ seal with 20% longer life
• XP = eXtra Protection in real world applications
• Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one

Specifications:
• Non-sized cylinder is adjustable for interior doors to 5’0″ and exterior doors to 4’0″
• Meets ADA requirements
• UL and cUL listed for self-closing doors without hold-open
• Tested and certified under ANSI/BHMA A156.4 Grade 1
• 4040XP may be used with all 4040 accessories
• Non-handed, non-sized, delayed action and accessibility options available

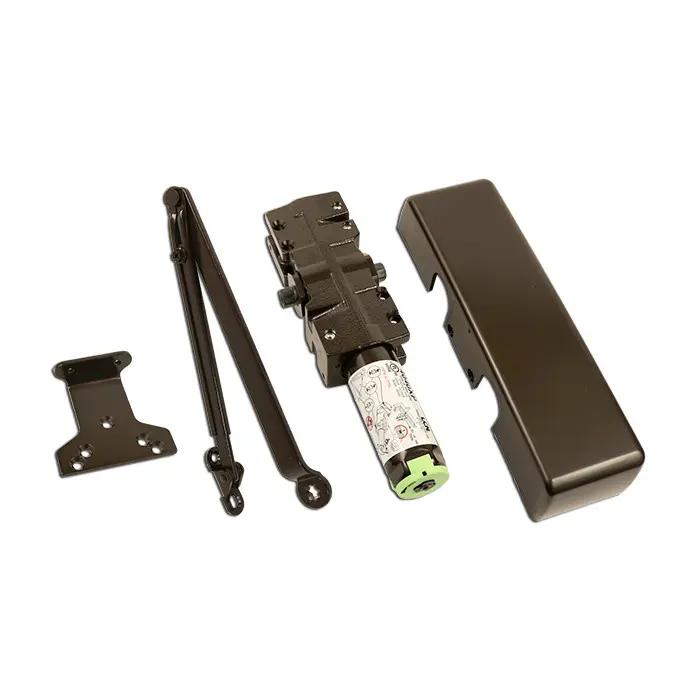

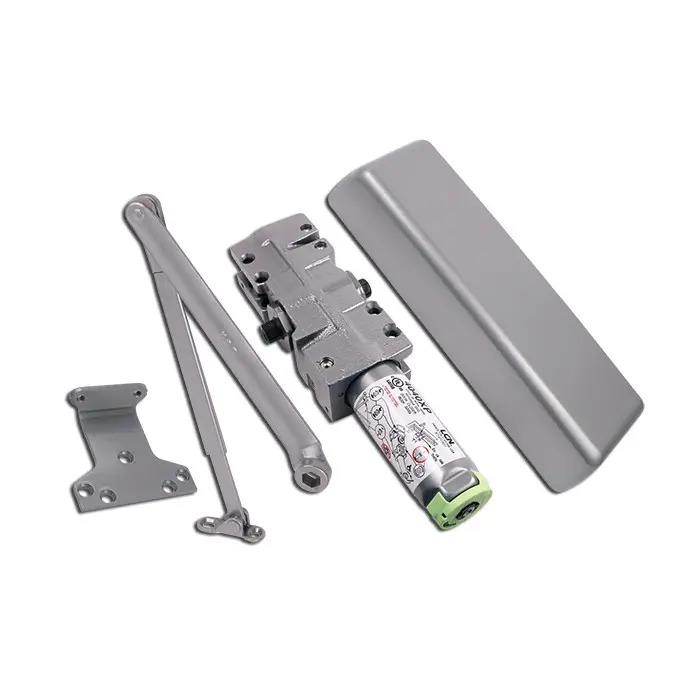

Closer will be shipped with:
• 4041XP- Standard Cylinder – (Adjustable 1-5)
• 4040XP-72 – Standard Cover (Plastic Cover)
• 4040XP-3077 – Standard Duty Arm
• 4040XP-62PA – PA Shoe – Required for parallel arm mounting
• Self-reaming and tapping screws (SRT)
