Description

Applications: The 4110 is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

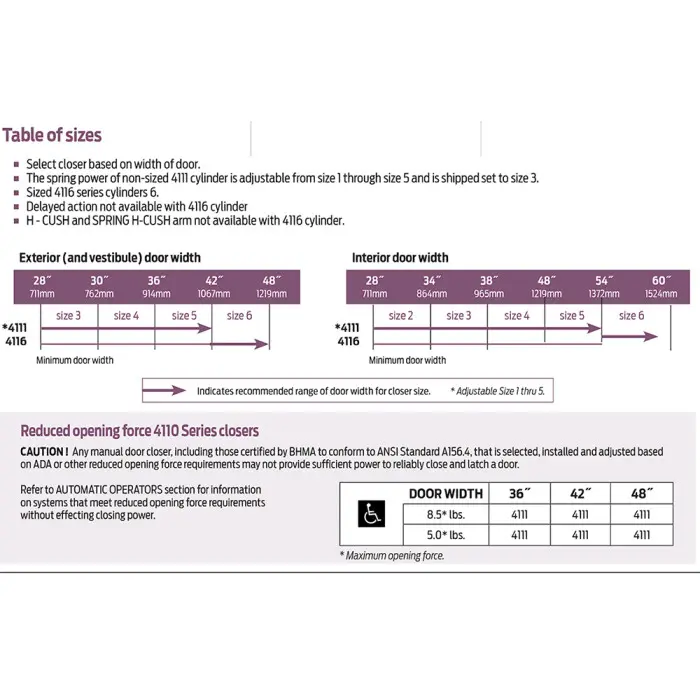

Spring Size:
• 4111 adjustable spring size 1 to 5
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”.

Body Construction:
• Cast iron cylinder with full-complement bearing
• 1-1/2″ diameter piston
• Double heat-treated steel pinion journal

Quality and Durability:
• All-weather fluid
• LCN patented Green Dial spring force indicator
• 30-year warrant

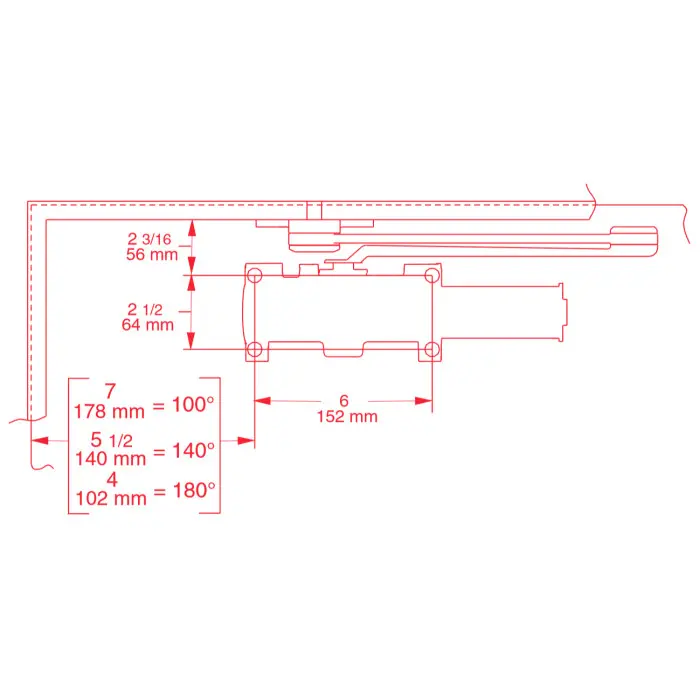

Templating: Peel-n-Stick templates – 2 1⁄2″ x 6″ mounting hole pattern

Installation:
• Application specific handed
• Peel-n-stick template and standard plastic cover

Powder Coat Finishes:

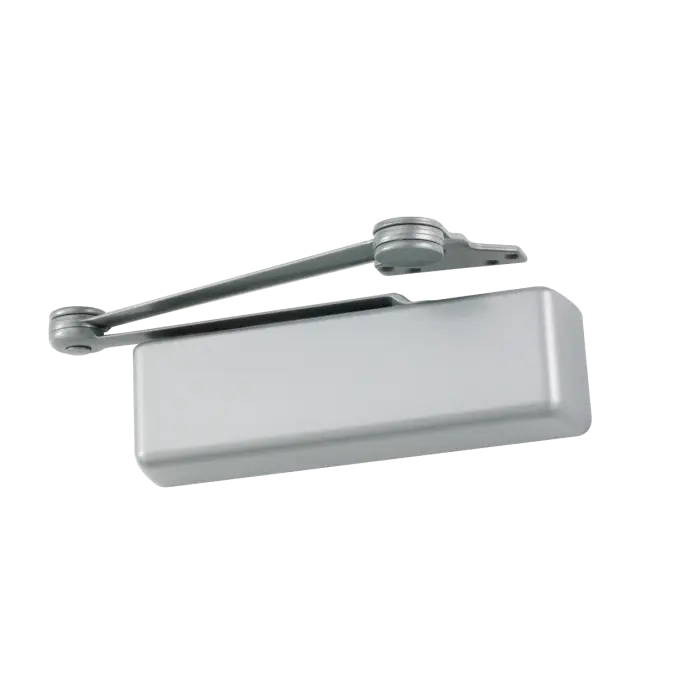

• 689 – Aluminum

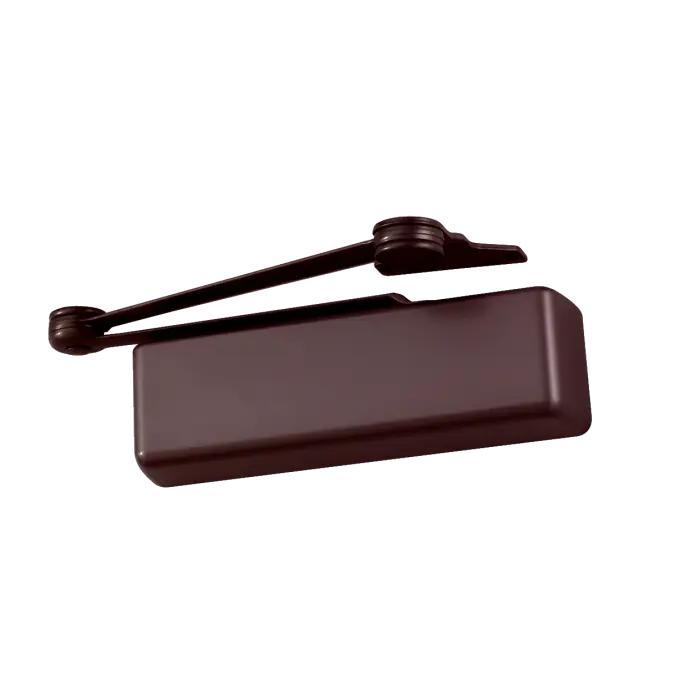

• 695 – Dark Bronze

Features:
• Functions: Non-Hold Open or Hold Open
• EDA – Extra Duty Arm – 4110-3077
• Closer mounts parallel arm
• 4111 cylinder meets ADA requirements.
• The 4110 Series is UL and ULC listed for self-closing doors without hold-open.

Certifactions: Grade 1 – ANSI A156.4, UL10C, ADA, 100 Hour Salt Spray, Meets BAA – Buy American Act

Closer will be shipped with:
• 4111 (Adjustable 1-5) – Standard Cylinder
• 4110-72 – Standard Cover (Plastic Cover)
• 4110-3077 – EDA-Extra Duty Arm
• Self-reaming and tapping screws (SRT)
