Description

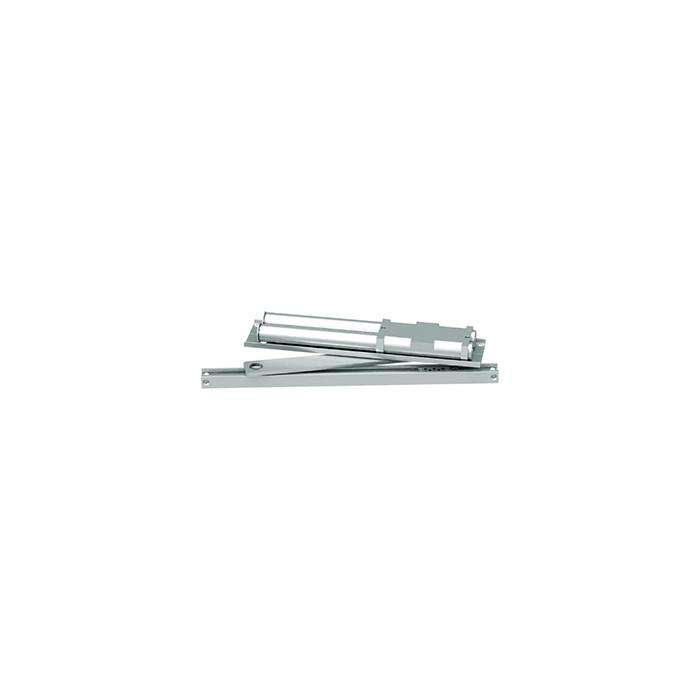

The concealed 6030 Series PACER
• is a heavy duty, double acting closer designed to fit in a narrow, minimum 1-3/4″ header. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).
Product Description & Features:

• Heavy Duty Double Acting Concealed-in-Frame Closer Interior/Exterior mounted in 1-3/4″ X 4″ Frame
• Standard 6030 series closer shipped with standard arm, standard track with bumper, mounting/finish plate and wood and machine screw pack.
• Sized, double acting cylinders for interior doors to 4
•6″ and exterior doors to 3
•6″.
• Aluminum frame requires minimum 1-3/4″ (44 mm) x 4″ (102 mm) tube.
• Closers to meet ADA requirements.
• Adjustment of spring power and latch speed independent for either swing.
• Backcheck and general speed adjustment are common for both swings
• Closer Size is stamped on the back of closer with a number (Closer must be remove from header to identify closer size)
Features & Benefits:

• UL listed for self-closing doors, non hold-open
• Tested and certified under ANSI Standard A156.4
Certifications:

• Grade 1 – ANSI A156.4, UL 10 C, ADA, 100 Hour
• Salt Spray, Meets BAA – Buy American Act
Body Construction:

• Cast Iron Body
• Full Complement Bearing
• 1-1/8″ Diameter Piston
• 11/16″ Diameter Double Heat Treated Pinion Journal Fluid
• All Weather Fluid
• Non-Handed
Warranty:
15 years
Mounting:
Concealed (in tube); double acting
Arms:
Standard arm with track
Finishes/Colors:

• Aluminum – 689
• Dark Bronze – 695
Spring Tension Sizes:

• LCN-6031 – Size 1 for Exterior Doors 28″ – 30″ and Interior Doors 28″ – 30″ – ADA
• LCN-6033 – Size 3 for Exterior Doors 30″ – 34″ and Interior Doors 34″ – 38″
• LCN-6034 – Size 4 for Exterior Doors 34″ – 36″ and Interior Doors 38″ – 48″
