Description

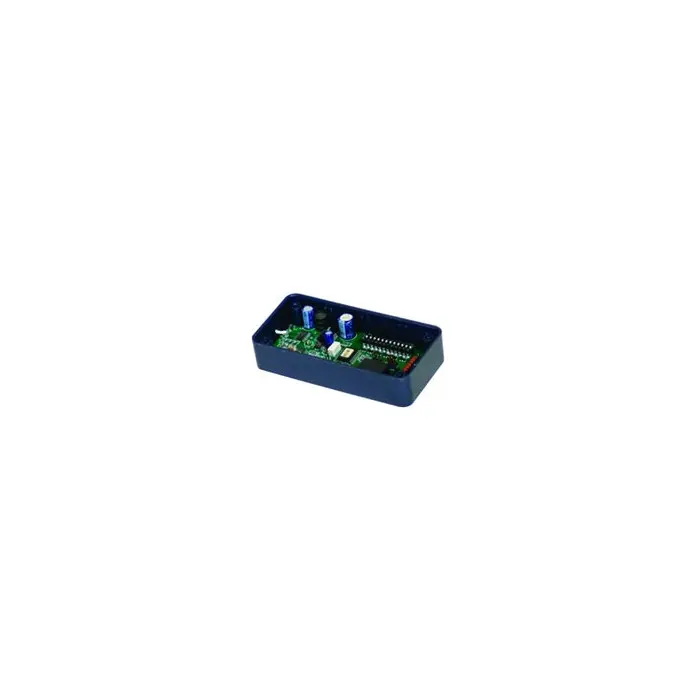

Application: The CP/RX receiver is part of the ClearPath Radio Control Push Plate Switch Activation System that provides the most reliable wireless activation of automatic doors available.

Product Description & Features
• All ClearPath transmitters communicate with this one receiver.
• In addition to being a receiver, The CP/RX can be easily programmed to become a timer, dual receiver or a sequencing receiver.
• The CP/RX accepts three different frequencies. If interference is encountered on one frequency, simply switch to one of the other frequencies to solve the problem.
• The CP/RX can also be used interchangeably with other manufacturers products that operate on its frequencies. Only ClearPath offers this flexibility.

5 Programming Modes:

• Mode 1: Standard Receiver (factory setting)
• Mode 2: Receiver With Adjustable Time Delay
• Mode 3*: Dual Channel Receiver
• Mode 4*: Receiver With Sequenced Outputs
• Mode 5**: Receiver With Ratchet Relay
• *Modes 3 & 4 Require The RXM Add-On Module. This Module Plugs Directly Onto The CP/RX Main Circuit Board And Provides A Second Output.
• **Mode 5 Requires The RXR Add-On Module. The Module Plugs Directly Onto The CP/RX Main Circuit Board and Allows For Initial Signal To Hold Relay Closed Until A Second Signal Is Received.

Technical Data:
• Utilizes Proprietary High Definition Radio Control (HDRC) For Unsurpassed Signal Transmission Clarity.
• Three User Selectable Frequencies Available in Single Unit: HDRC, 300 MHz, 390 MHz
• FCC License For All Three Frequencies
• N.O. And N.C. Contacts
• Pluggable Wire Harness
• Internal Surge Protection Wires Directly To Electric Locking Devices Output Contact: Form C, Rated At 3 Amps
• Power Requirements: 12V To 24V AC or DC
• Relay Contact Rating: 3 amp @ 24V AC
• Compact Size: 4″L x 2″W x 1″H
• Temperature Range: -4F to 140F (-20C to 60C)
• Output Contact: Form C, Rated At 3 Amps
• Power Requirements: 12V To 24V AC or DC
• Relay Contact Rating: 3 amp @ 24V AC
• Compact Size: 4″L x 2″W x 1″H
• Temperature Range: -4F to 140F (-20C to 60C)

Applicable Standards:
• American National Standards Institute (ANSI) Manufacturers Association (BHMA) – ANSI/BHMA A156.10 & A156.19.
