Description

Product Description & Features
• The CP/TX wall mount transmitter is part of the ClearPath Radio Control Push Plate Switch Activation System that provides the most reliable wireless activation of automatic doors available.

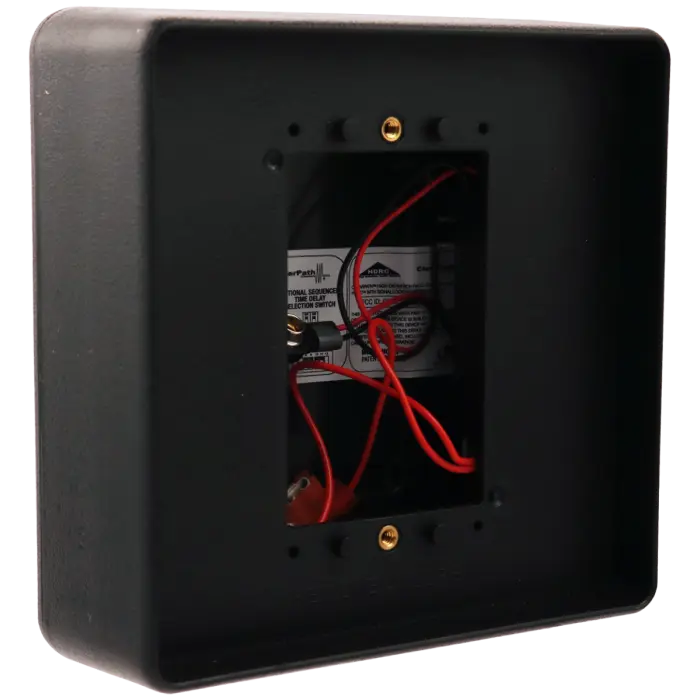

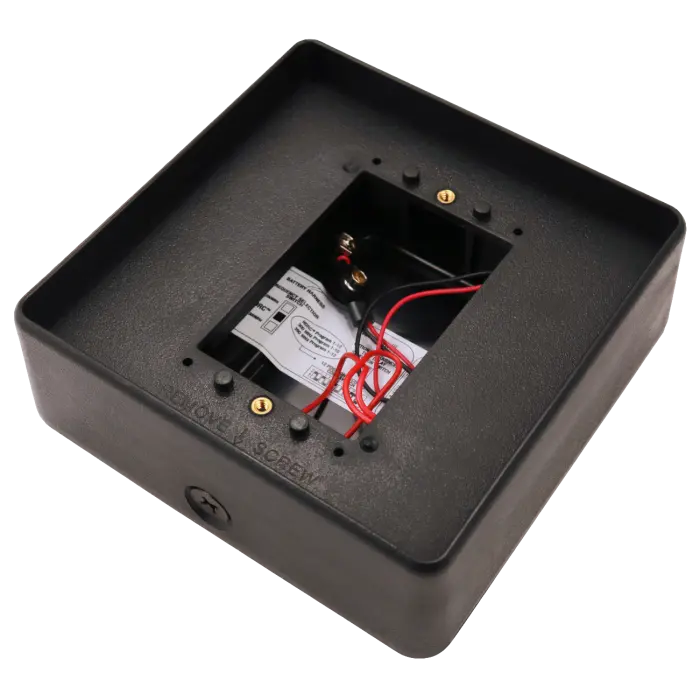

• The CP/TX transmitter comes prewired and installed with battery in a surface mount box making installation quick and easy.
• The CP/TX can transmit three different frequencies. If interference is encountered on one frequency, simply switch to one of the other frequencies to solve the problem.
• The CP/TX can also be used interchangeably with other manufacturers products that operate on its frequencies as well.
• Only ClearPath offers this flexibility.

Technical Data:
• Utilizes Proprietary High Definition Radio Control (HDRC) For Unsurpassed Signal Transmission Clarity
• Three User Selectable Frequencies Available In Single Unit: HDRC, 300 MHz, 390 MHz
• FCC License For All Three Frequencies
• SignalLock
• Guarantees Signal Transmission When Push Plate Switch Is Pressed
• Power Saving Circuitry Extends Battery Life
• Integrated Signal Radiating Antenna Boosts Signal Strength

Product Description & Features

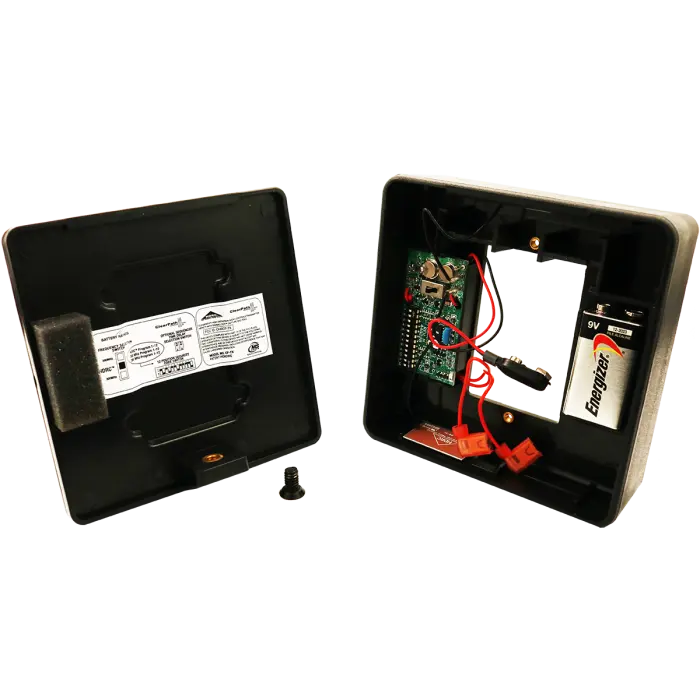

• Transmitter And Battery Factory Prewired And Installed In Mounting Boxes
• Powered By Standard 9V Battery
• Quick Battery Access
• Temperature Range: -4F to 140F (-20C to 60C)

Dimensions: 4-3/4″ W x 4-3/4″ H x 2-1/4″ D

Applicable Standards:
• American National Standards Institute (ANSI) – Building Hardware Manufacturers Association (BHMA) – ANSI/BHMA A156.10 & A156.19.
