Description

Product Description & Features:
• Standard 180 top pivot included
• M19 (order separately)
• Pivot can be vertically adjusted up to 3/16″ (5mm) after installation
• Doors over 60″ (1524mm) require the use of one intermediate pivot. Every additional 30″ (762mm) of door height warrants another intermediate pivot
• Not available for fire-rated doors
• 3/4″ (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8″ in 2″
• Weight of door is borne by floor postition
• Furnished with wood and machine screws
• Extended spindles available in 1/2″ (13mm) increments up to2″ (51mm)
• Doors will swing 180
•, trim permitting

Application:
• Exterior or Interior Doors
• Weight to 450 lbs.*
• Door Width up to 4’0″ (1219mm)
• Handed
• Jamb Attached Pivot Set * Door size & weight guidelines are determined using the appropriate number of intermediate pivots

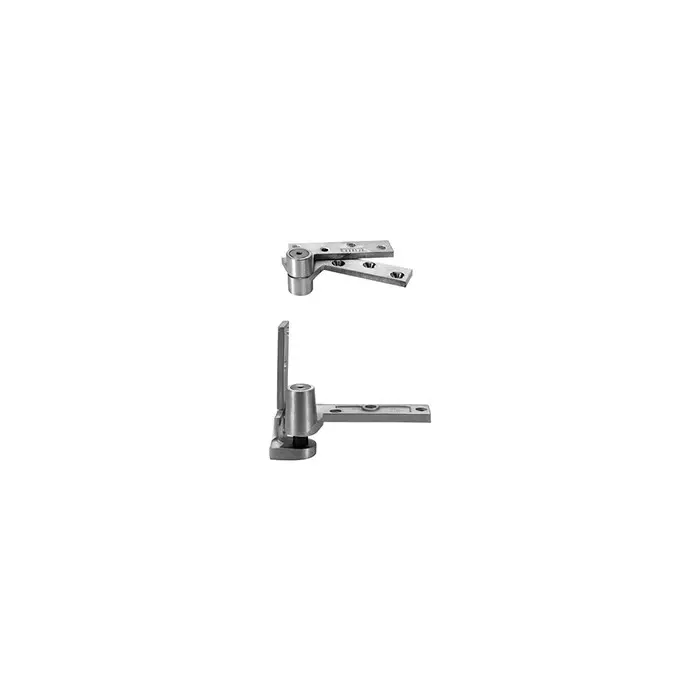

Pivot Set Contents:
• 180 Top Pivot
• 19503/19504 Door Portion Assembly
• 19501/19502 Jamb Portion Assembly

Finishes:
• 625 – Bright Chrome (US26)
• 626 – Satin Chrome (US26D)
• 605 – Bright Brass (US3)
• 612 – Satin Bronze (US10)
• 613 – Oil Rubbed Dark Bronze (US10B)
