$546.48

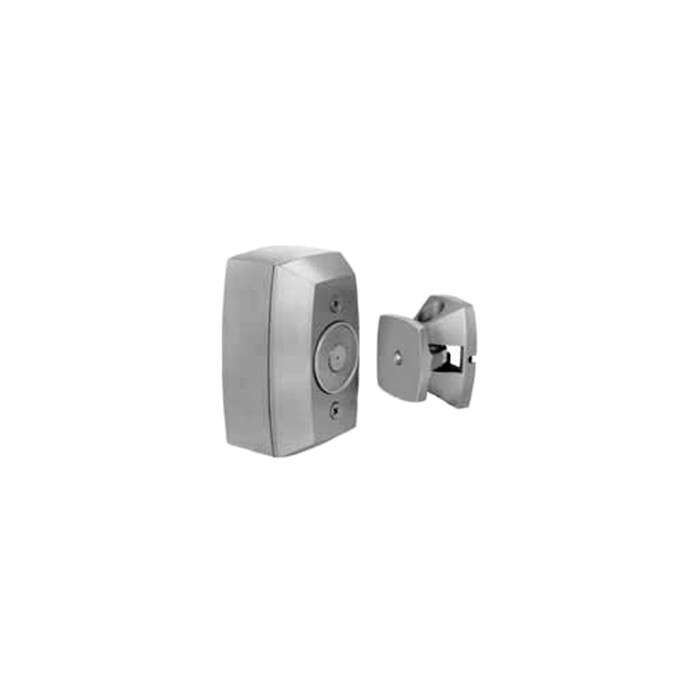

Rixson 996 Surface Mounted Electromagnet replacement for 50-55 lbs. of Holding Force, surface wiring, wall mount.
Contact Us
Orders placed after 11 am may not ship until the next business day.
Product Description & Features:
• Total Projection: 4-1/8″ (105mm)
• Mounting Requirements: 1-1/2″ (38mm) deep adapter housing
• Wall must be properly reinforced
• Shipping Weight: 3 lbs. (1.4 kg)
Application:
• Wall Mount
• Surface Wiring
• ANSI/C00011
Technical Information:
• Voltage and Current:
• 120VAC, 60Hz., .020 amp
• 24VAC/DC, 60Hz., .020 amp
• 12VDC, .040 amp
• For 50-55 lbs. of holding force, specify voltage
• 120VAC, 60Hz .017 amp
• 24VAC, 60Hz .080 amp
• 24VDC, .068amp
• 12VDC, .180amp
• 240VAC, 50/60Hz. .009 amp
Finishes:
• 689 – Aluminum
• 690 – Dark Bronze
| Weight | 5 lbs |
|---|---|
| Dimensions | 9 × 6 × 4 in |
| Finish | Aluminum Painted – 689/U28, Dark Bronze Painted – 690/US20 |
