Description

• Aluminum door retrofit outside trim for Adams Rite
• 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks.

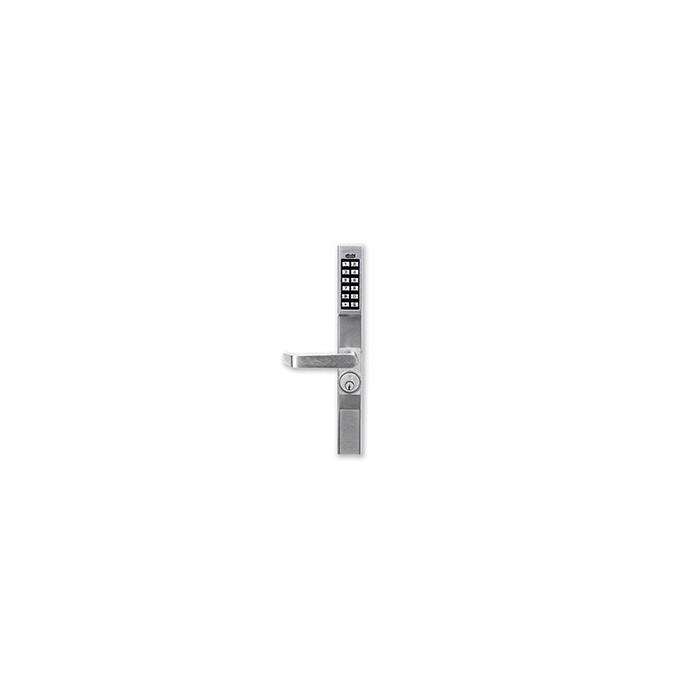

• Replacement Trilogy Lock for Storefront Glass/Aluminum Doors
• Field-proven, familiar Trilogy
• programming & electronics
• Digital Pin Models Supports 100 users, fingertip/keypad programmable.(see model info.)
• All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes, and multilevel user hierarchy (master, manager, supervisor, basic users)
• Keypad or PC programmable (see model info.). Quickly and easily add or delete users and enter “passage mode”, service codes, group lock-out & group-enable
• Wide weatherproof operating range from -31 to 151
•F (-35 to 66C)
• Wireless standalone locks: Long-life, battery- operated; Includes audible and visual low battery alert. (Uses standard off-the-shelf batteries.)
• Non-handed; fully field-reversible
• Long-life, battery- operated for 100,000 and 80,000 cycles respectively, typ.on 2 lithium 3V batteries, supplied; low battery alert
• Key override; interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
• Mortise Cylinder, 1-1/4″ supplied. (Supports 1-1/8, 1-1/4 and 1-3/8″)
• Compact styling 14-3/8″ H x 1-5/8″ D x 1-3/4″ W
• Backsets: 31/32″,1-1/8″ and 1-1/2″ ; Stile thickness 1-3/4″

Trilogy Lock Finish:

• Satin Chrome – US26D
