$9.00

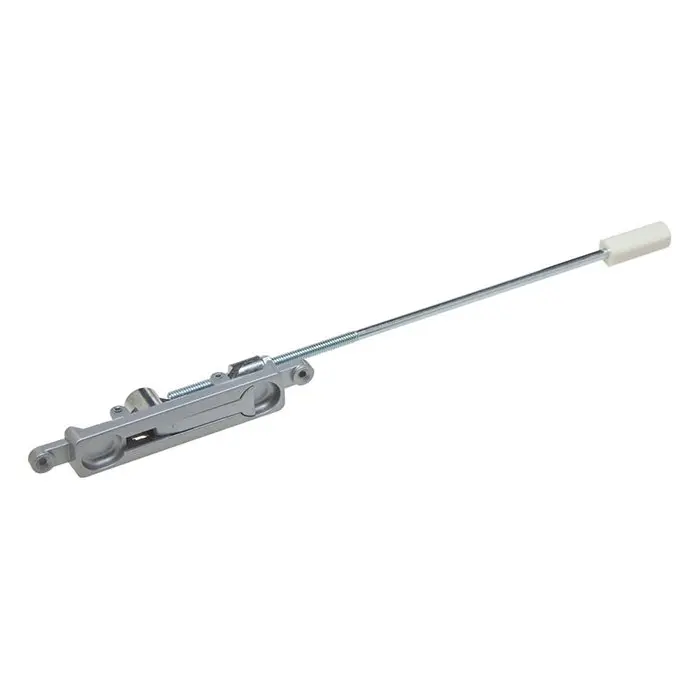

Ilco FB-2202 flush bolt 1/8′ offset, 7/8′ throw with guide
• Made for Aluminum Glass Doors Only
• Flush bolts are recessed into the door edge (top and bottom) and slide upward or downward into the jamb (or threshold) to keep the door closed.
• For interior & exterior commercial aluminum store front doors.
• FG-1200 Flush Bolt Guide (Included)
• Replacement Door Hardware
Contact Us
Orders placed after 11 am may not ship until the next business day.
Application: Flush bolts are recessed into the door edge (top and bottom) and slide upward or downward into the jamb (or threshold) to keep the door closed.
• Made for Aluminum Glass Doors Only
Product Description & Features:
• Used to keep door locked from the bottoms and tops of doors
• For interior & exterior commercial store front doors
• FG-1200 Flush Bolt Guide (Included)
• Rod length for 12″ Centerline of face installation
• International ER-1200 12″ Extension Rod (Order Separately)
Dimensions:
• 15/16″ x 4-1/4″ Radius Face
• Positive “U” joint actuator with 7/8″ throw
• 1/8″ and 1/4″ offset with 7/8′ backset
• Square Nylon Tip with beveled corners fits in 1/2″ square hole
Finishes:
• AL – Baked Satin Aluminum Paint
• DU – Baked Storefront Bronze Paint
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 7 × 1 × 1 in |
| Finish | Baked Satin Aluminum Paint – AL, Baked Storefront Bronze Paint – DU |
