Description

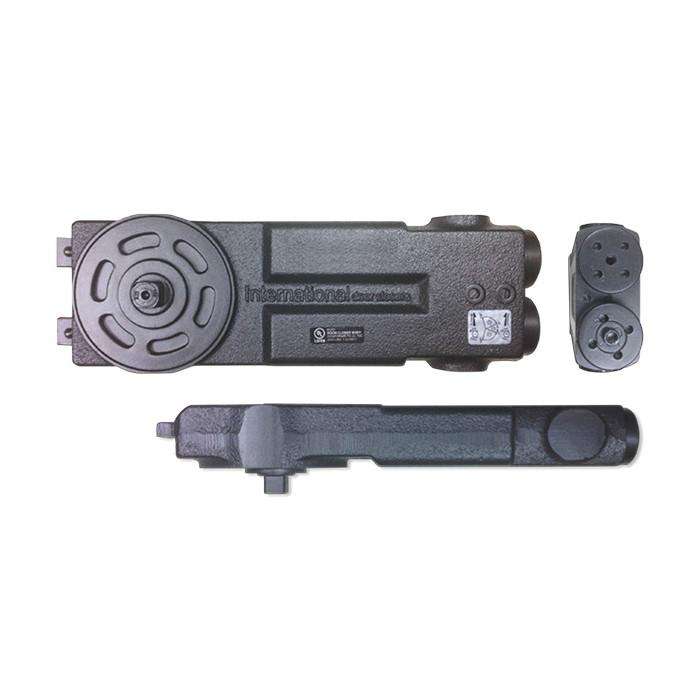

Application: Concealed in the header door closer that closes a door in a controlled manner, preventing it from slamming

Spring Tension Size: 300 Series Adjustable Duty – (5 to 8.5 lbs) – ADA Handicap Compliant

• ADA Compliant Storefront door hardware for interior & exterior commercial doors
• Interchangeable Replacement Concealed Overhead Closers for: Calibre, CRL-Jackson, DCSC, International, Kawneer Husky 2

Product Description & Features:
• Fits in an aluminum header or transom bar as small as 1-3/4″ x 4″
• Function: Non-Hold Open – NHO
• LAP – Closer Body Only
• Mounting Brackets Included with Installation fasteners
• Non-Handed
• Degree of Opening: 105°
• Closer Spindle Size: 1/2″ (12.7 mm) Standard
• Suitable for both Center Hung (Double or Single Acting) and Offset Doors.
• Double Acting – Doors may be modified to single acting by applying a on the frame header or transom bar
• Built-in positive back stop and hold-open positions available
• All Weather Fluid
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Stable hydraulic door check fluid for any climatic operation and constant lubrication.

Degree of Opening: 105°
• An integral positive stop limits door swing to 105°. The purpose of this stop is to prevent the door from hitting a wall or other architectural feature.

Header/Overhead Door Stops:

• An auxiliary stop(Header Stop) should always be installed in conjunction with closer for single acting applications to prevent a door from swinging past the required stop point.
• Door hardware may require that a door swing to only 85 degrees to prevent exterior handles from hitting a wall. Similarly, hardware on the push side of the door may require that the door swing further than 90° degrees to clear the opening of protruding hardware

Compliance Standards:
• ADA (Handicap) multi-size closer with Adjustable Spring Power for a range of sizes from 5 lb. to Medium Spring Tension, fully adjustable after installation.
• Barrier Free Operation to comply with Federal Accessibility Standards (ADA): complying with ANSI A117.1 (4.13. 11).
• UL/C-UL Listed
• UL 10B and UL 10C Compliant for positive pressure
• Certified to conform to UBC 7-2 (1997, UL 228)
• Barrier Free Operation to comply with Federal Accessibility Standards (ADA): complying with ANSI A117.1 (4.13.11) available for center pivoted applications.

Center Hung Door Applications:
• Complete units for aluminum doors and frames are furnished with top arm assembly (adjustable ‘S’ side loading, “A” end loading, “K” end loading or “PT” end loading), adjustable dual purpose 3010-DP bottom pivot set for floor or threshold mounting (side or end loading) and 3010-FS anchor set with all fasteners.

• “S” type side loading, “A” type, “K” type, or “PT” type end loading top arms are available for center  pivoted applications.
• “A” type, “K” type or “PT” type end loading and “JO” or “VO” type offset arms are optional, but must be specified.
• “G” and “GE” type pivot sets are available, but must be ordered separately.
Offset Hung Door Applications:
• Complete units for offset pivoted or butt hinged aluminum doors and frames are furnished with a “JO” or “VO” type offset arm and 3010-FS anchor set with all fasteners.

• 3010-DP dual purpose radial ball bearing bottom pivot set is standard for floor or threshold center pivoted installation. Optional 3010-GE bottom  pivot sets are available, but must be ordered separately.
• 5 YEAR WARRANTY

Parts and Accessories:

PART NO.
• 3000-B – Unit Body (Specify: Spring Tension & degree of Back Stop & Hold open)
• 3010-S – “S” Type Adjustable Side Loading Top Arm Assembly (1/2” Depth Top Rail)
• 3010-A – “A” Type End Loading Top Arm Assembly (1” Depth Top Rail)
• 3010-K – “K” Type End Loading Top Arm Assembly (5/8” Depth Top Rail)
• 3010-PT – “PT” Type End Loading Top Arm Assembly (7/8” Depth Top Rail)
• 3010-JO x AL 3010-JO x DU – “JO” Type Offset Top Arm Assembly Mortised Type (9/16” Depth Top Rail) – Painted Arm -Aluminum or Storefront Bronze
• 3020-VO x AL 3020-VO x DU – “VO” Type Offset Top Arm Assembly Surface Type (7/8” Depth Top Rail) – Painted Arm -Aluminum or Storefront Bronze
• 3010-FSP – Anchor Set (Standard)
• 3010-DP – Adjustable Dual Purpose Bottom Pivot Set (Standard)
• 3010-G – Adjustable Floor Mount Bottom Pivot Set (Optional)
• 3010-GE – Adjustable Threshold Mount Bottom Pivot Set (Optional)
