Description

Application: Designed for Use with 1-3/4″ (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors

Product Description & Features:
• The 48″ (1.22 m) long contoured crossbar is Field Sizeable*, and the device is shipped to fit up to 84″ (2.13 m) tall door.
• Non-Handed
• Independent top and bottom bolt action – 1/2″ (13 mm) bolt throw.
• Trigger action, positive bolt release
• Adjustable bolt guides allow bolt adjustment with door installed
• Requires No. 30-821 J Cylinder mounting pad when using mortise cylinder for keyed entry.
• Uses standard mortise cylinder with maximum security (MS) type cam.
• Foam rubber silencers to quiet rod operation.
• Standard mounting package consists of machine screw type fasteners.
• Crossbar mounting height 36-1/2″ from bottom of door.
• Rod length shipped standard for 7/0 (2134 mm) high doors.
• For doors over 7/0 (2134 mm) High:
• Top Rod Extender – 12″ (305 mm) No. 30-1347
• Top Rod Extender – 24″ (609 mm) No. 30-1348
• Top and Bottom Bolt No 30-763P
• Top and Bottom Strikes No. 30-1084
• Contoured Crossbar
• Available with Push Paddle operation on active side – Paddle engraved with “PUSH”
• Extra heavy-duty lever arms and body
• Wear points insulated by nylon sleeves and rollers
• Dual dogging feature: – By outside cylinder – By dogging pins beneath housing
• Concealed fastening for added security
• Easy installation
• UL Listed for Panic Hardware

Finishes:

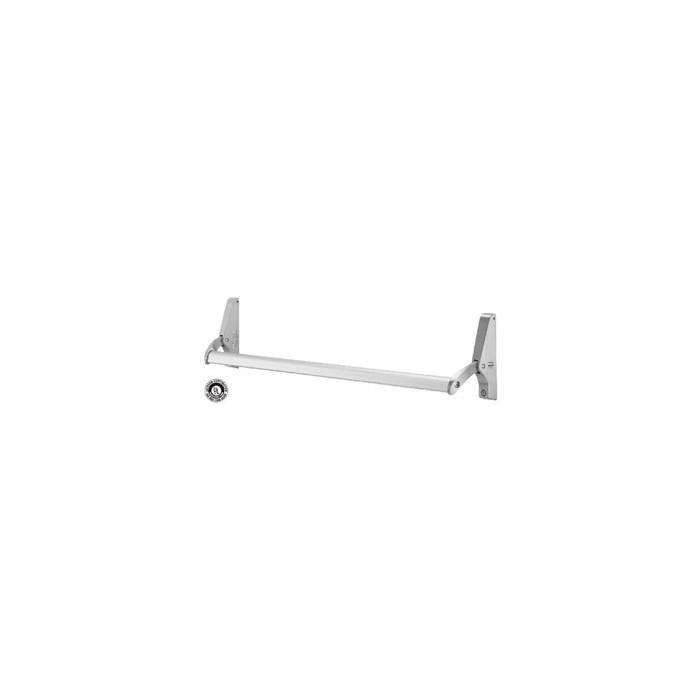

• Satin Aluminum Anodized – 628

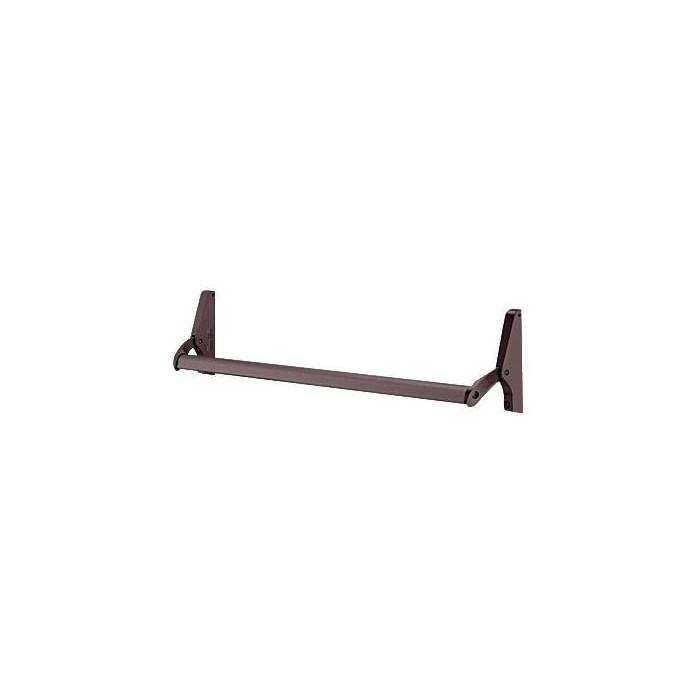

• Dark Bronze Anodized – 313
