Description

Application: Concealed in the header door closer that closes a door in a controlled manner, preventing it from slamming

Product Description & Features:
• For use on interior/exterior commercial aluminum, wood or hollow metal door and frames

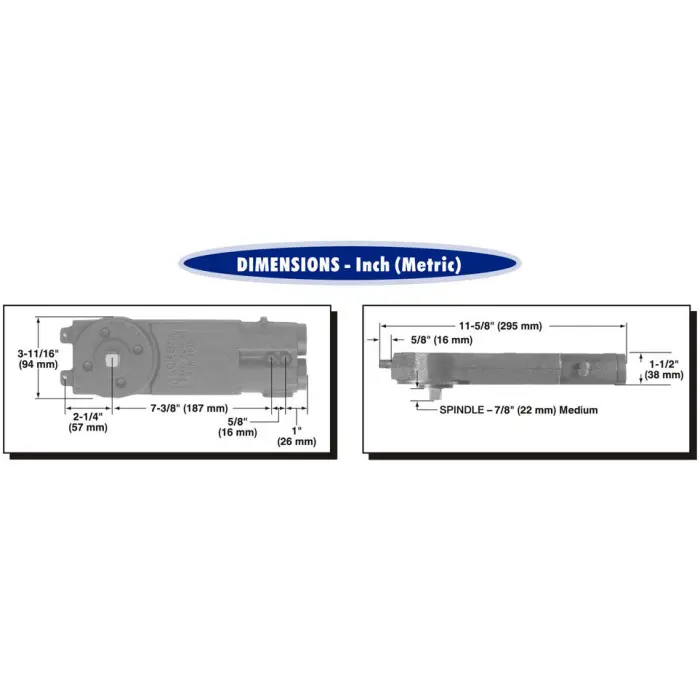

• Fits in an aluminum header or transom bar as small as 1-3/4″ x 4″ (45 x 102 mm)
• Interchangeable replacement with other concealed overhead door closers: Calibre, International, and Kawneer
• Storefront door hardware
• Degree of Opening: 105°
• MO – Mechanism Only
• 2 Valve Control – Latching and Speed are independently adjustable
• Closer Spindle Size: 7/8″ (22 mm) Standard
• Double Acting – Door swings in both directions – Doors may be modified to single acting by applying a overhead stop on the frame header or transom bar
• Non-Hold Open – NHO
• For use with Light to Medium traffic doors weighing up to 250 lbs (113 kg)

Spring Tension Size:
• Adjustable Spring Size: Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
• Maximum Interior Door: 42″ (1067 mm) Wide x 96″ (2438 mm) Tall
• Maximum Exterior Door: 36″ (914 mm) Wide x 96″ (2438 mm) Tall
• Maximum Door Weight: 250 lbs (113 kg)
– Adjustable Duty – 105º – Non-Hold Open – 7/8″ Extended Spindle

Swing Functions:
• Closing speeds are controlled by two non-critical adjustment valves. Sweep area is from 105° to 20°. Latch area is from 20 to 0.
• A mechanical backcheck slows down the door prior to contact with the positive stop.

Degree of Opening:
• An integral positive stop limits door swing to 105°. The purpose of this stop is to prevent the door from hitting a wall or other architectural feature

Header/Overhead Door Stops:

• An auxiliary stop(Header Stop) should always be installed in conjunction with the closer to prevent a door from swinging past the required stop point.
• Door hardware may require that a door swing to only 85 degrees to prevent exterior handles from hitting a wall. Similarly, hardware on the push side of the door may require that the door swing further than 90° degrees to clear the opening of protruding hardware
• Stop used for single acting applications
