Description

Application: Designed for use on single or pairs of doors. It is suited for medium and high traffic areas. Available on 190, 350 and 500 style standard doors, and 350\500 Heavy-wall doors.

Product Description & Features:

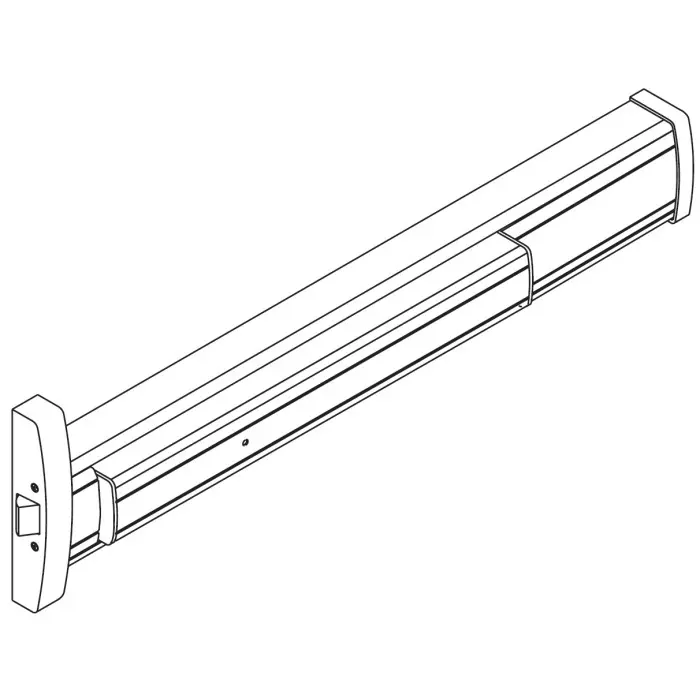

• The Kawneer 1786 Rim exit device is an exclusive to Kawneer customers. This exit device is UL Listed. This device has the same basic features as the concealed vertical rod device above. Its difference is in the latching mechanism. A 5/8″ throw latch bolt in the rim of the housing engages an aluminum jamb or removable mullion mounted strike. Depression
of the touch bar on the interior retracts the latch bolt and permits egress from the building.

Dimensions:
• Center line of touchbar to bottom of door 40″ (1016)
• Height 3-3/16″ (81)
• Projection 2-3/4″ (70)
• Projection when dogged 1-13/16″ (46)

Finish:
• Clear – 17
• Dark Bronze – 40

Optional: 1786 EL version for access control applications. Cylinder dogging in lieu of hex key dogging.
