Description

Application: This light-to-medium duty closer is designed to fit into the most common commercial foot print.

Spring Tension Size: Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”

Product Description & Features:
• The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability.
• The 1260 also features a complete line of regular and extra duty arms and LCN’s peel-n-stick installation templates.
• Regular Arm w/62PA (Rw/PA)

Features Common to 1000 Series:
• 1000 series closers mount three ways. Closers with regular or hold-open arm mount hinge side or top jamb. Parallel arm, designated with a “P”, closers include – 62PA SHOE required for parallel arm mount. 1460T mounts hinge side, top jamb (pull side) and stop face.
• Non-handed for right and left swinging doors
• Closers to meet ADA reduced opening for requirements
• Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees
• Separate regulation of general closing speed and latching speed
• Joints in arm and shoe adapt to uneven trim
• Reversible shoe to boost latching power on double lever arms

Specifications:
• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors

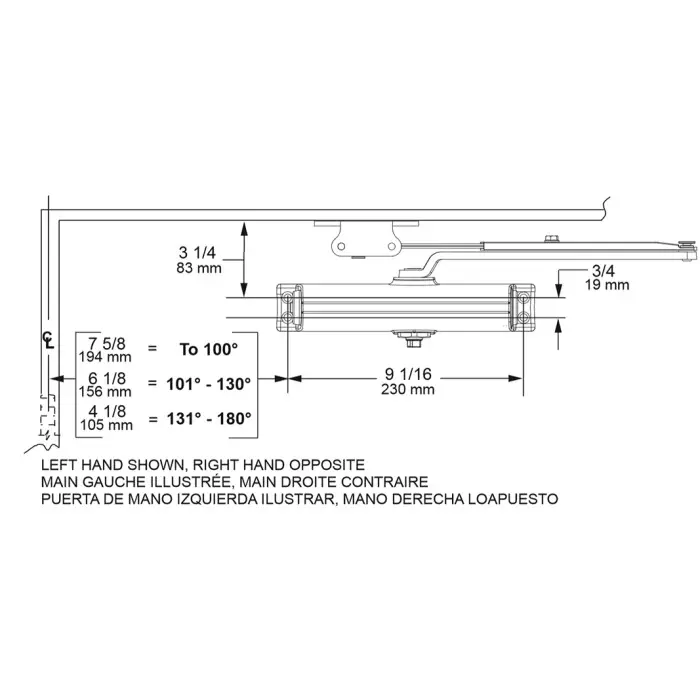

• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover

Certifications:
• UL and cUL listed for self-closing doors without hold-open.
• Tested and certified under ANSI Standard A156.4, grade one.

Finishes:
• Aluminum – 689
• Dark Bronze – 695
