Description

Product Description & Features:

• Type: Full Saddle Fluted Threshold
• Material: Aluminum
• Finish/Color: A – Mill Finish Aluminum
• Saddle thresholds are symmetrical shapes designed to span a given area, usually under a door.
• ANSI Number: Aluminum: J32100, J32130;

Ratings:

• Barrier-Free
• BHMA Certified
• Fire Rated – UL10C – Positive Pressure.
• Underwriters Laboratory 4L10

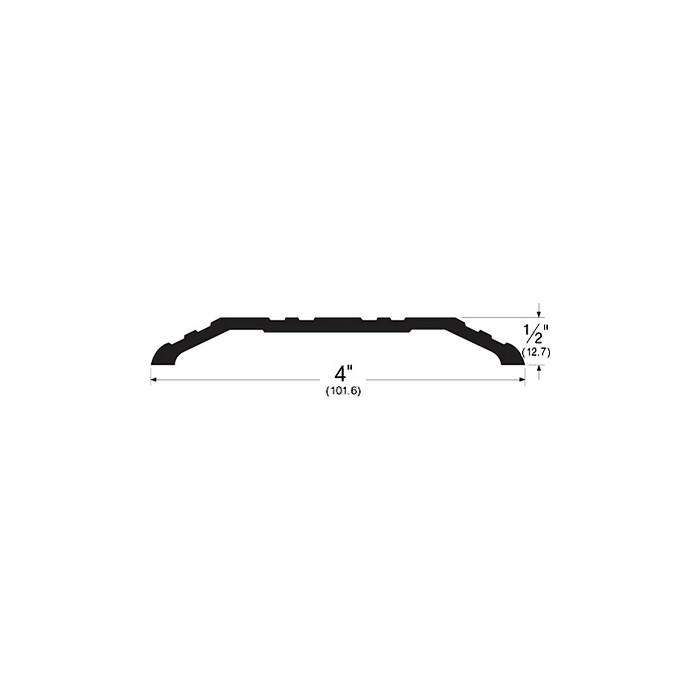

Dimensions:

• 4″ Wide x 1/2″ Rise
• Width: 4″ (101.6mm)
• Height (Rise): 1/2″ (12.7mm)

Threshold Lengths:

• 36″ (3ft)
• 48″ (4ft.)
• 72″ (6ft.)
• 84″ (7ft.)

Cross Reference
: Draftseal: DS400; Hager 404S, 410S; NGP: 424; Reese: S4L, S204, S424; K N Crowder: CT-9

Product Approvals:

• Tested and approved under UL10C for Fire
• ADAAG-1998 (Amended); ICC/ANSI A117.1 and California Building Code, Title 24 for Barrier-Free Entry
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
