Description

Application: Designed to seal the gap between the bottom of the door and the top of the threshold or floor surface

Product Description & Features:
• Designed to seal the gap between the bottom of the door and the top of the threshold or floor surface
• Seals gaps up to 5/8″
• Material: Aluminum with Nylon Brush Insert
• Surface applied to the face of a door
• Most effective when mounted on exterior of out-swinging doors
• Concealed Fasteners – aluminum snap cover conceals mounting screws to provide a clean, aesthetic appearance
• Covers snap securely into place to deter vandalism
• Mounting screws included
• Energy Efficient
• Seals against air, dust, water, sound, insects, and rodents

Ratings:
• BHMA Certified
• Smoke Tested – UL1784
• Fire Rated – UL10C – Positive Pressure
• Underwriters Laboratory 4L10
• GREENGUARD Gold Certified

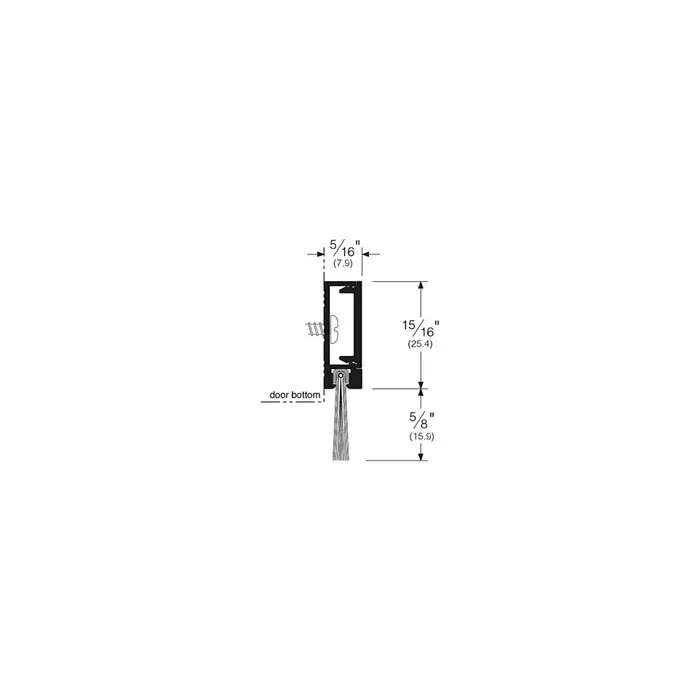

Sweep Dimensions:
• Sweep Length: 48″ (4ft.)
• Brush Length: 5/8″
• Width: 1/4″ (6.4 mm)
• Profile Height: 7/8″ (22.2 mm)
• Height Including Brush: 1-1/2″ (38.1 mm)

Finishes:
• C – Clear Anodized Aluminum with Gray Nylon Brush insert
• D – Dark Bronze Anodized Aluminum with Black Nylon Brush insert
