$172.83

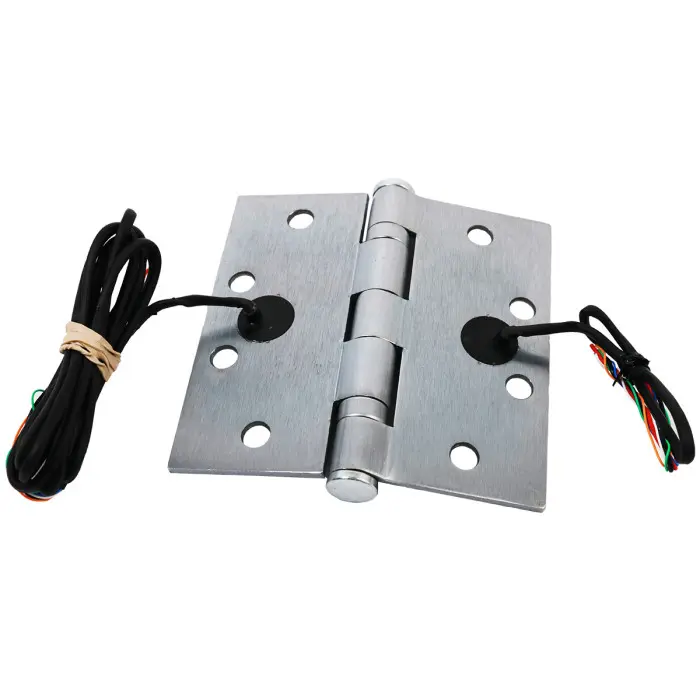

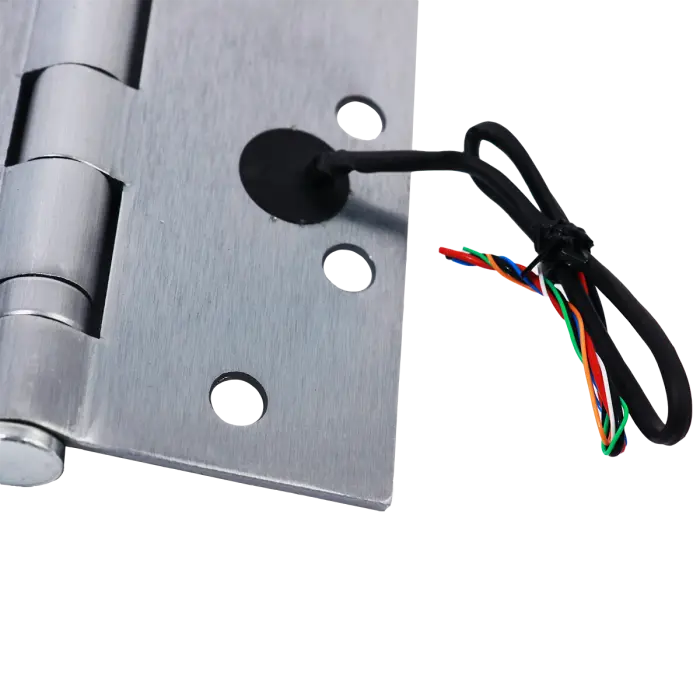

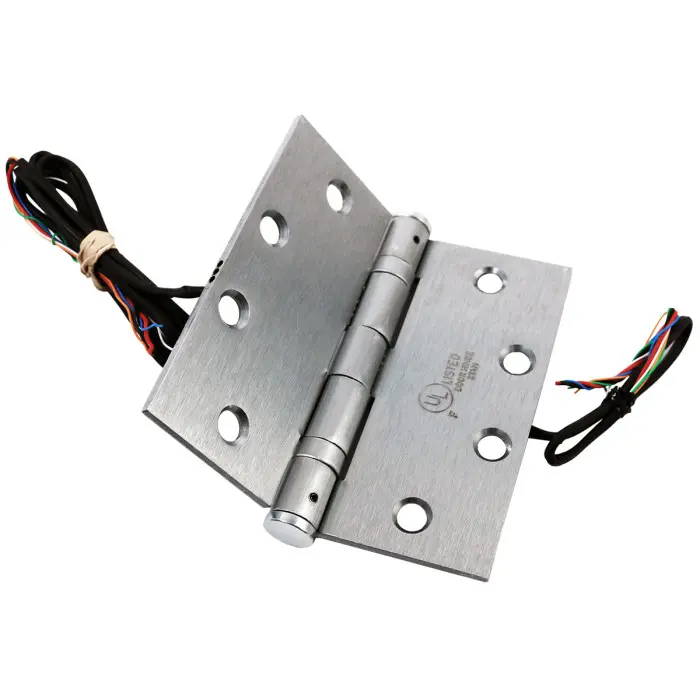

RCI 95216 4.5″ X 4.0″ Electrified Hinge – 24VAC/DC
• Replacement are used to transfer current to electric locks mounted in the door
• 5-Knuckle Ball Bearing (6 wire)
• Satin Chrome Finish
Contact Us
Orders placed after 11 am may not ship until the next business day.
Application: Used to transfer current to electric locks mounted in the door.
Product Description & Features:
• Full Mortise Concealed 6-Wire Hinge
• 5-Knuckle Ball Bearing (6 wire)
• Material: Stainless Steel
• Electrified hinges are fully mortised in the hinge style and concealed when the door is closed for tamper-resistance.

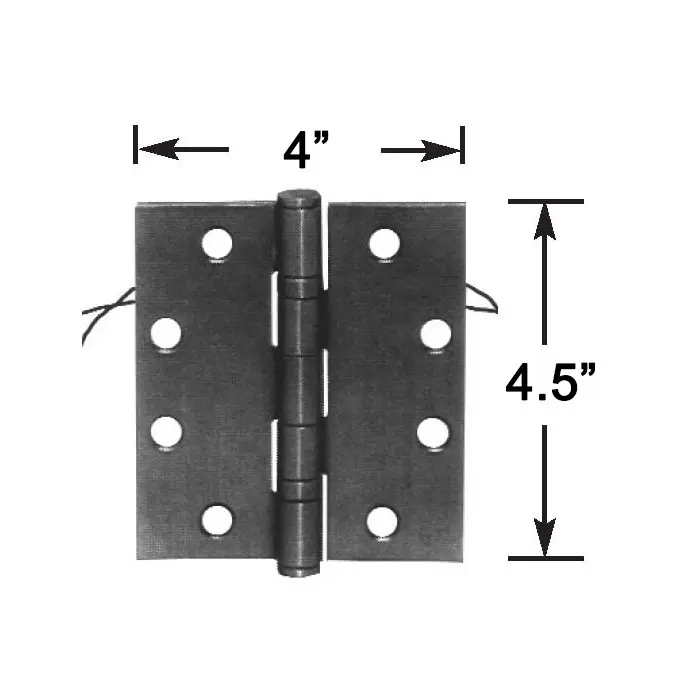

Dimensions: 4.5″ X 4.0″ (9521)
Finish: Satin Chrome
• 9521 – 2+4 conductor (2@20 gauge + 4@30 gauge) 3A @ 24VAC/DC + .1A @24VAC/DC
• 9522 – 2+4 conductor (2@20 gauge + 4@30 gauge) 3A @ 24VAC/DC + .1A @24VAC/DC
| Weight | 2 lbs |
|---|---|
| Dimensions | 4.5 × 4 × 2 in |
