Description

Application: Ideal for store front, moderate traffic aluminum doors and frames (Offset Applications)

Product Description & Features:
• Single or Double Acting, Non-handed
• Exterior or Interior Doors
• Low to Moderate Traffic
• Degree of Opening: 105° up to 130°
• Made for use on 1-3/4 Doors
• Available in non-hold open (door swings to 130 each direction).

Spring Size: – 608 – Weight to 200 lbs.
• Exterior Door Size 3’6″ x 8’0″ (1067 x 2438mm)
• Interior Door Size 3’8″ x 8’0″ (1118 x 2438mm)

Technical Details:

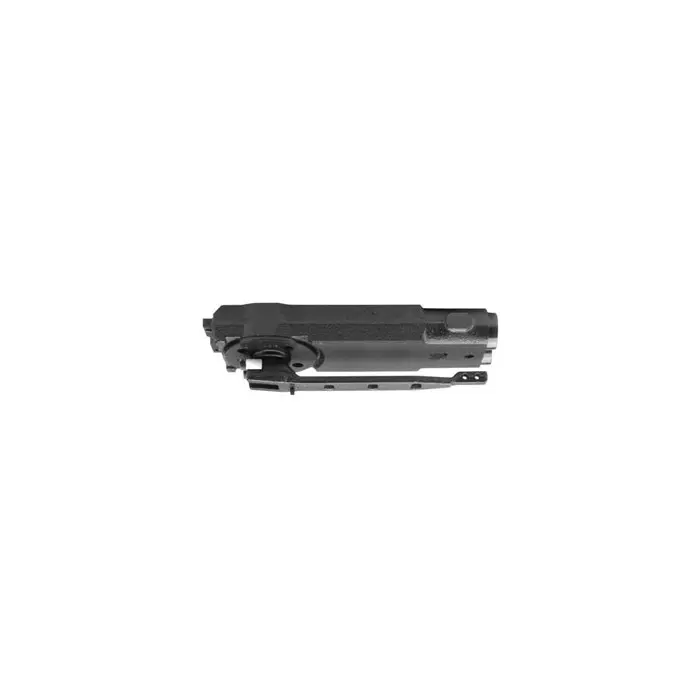

• LAP – Closer body only
• Product should always be used with auxiliary stop (Header Stop)
• Adjustable closing and latch speeds.
• Not available with cold weather fluid or delayed action
• On single acting center hung application frame stop is required
• 1/2″ longer than standards spindle is available and must be ordered ar part of the closer, it cannot be added later {Degree of Opening}

Degree of Opening:
• Concealed Overhead Closers may have a stop or limitation on the degrees of swing that a door will open. The purpose of this stop is to prevent the door from hitting a wall or other architectural feature.
• Typical swings are at 90 or 105 degrees.
• Door hardware may require that a door swing to only 85 degrees to prevent exterior handles from hitting a wall. Similarly, hardware on the push side of the door may require that the door swing further than 90 degrees to clear the opening of protruding hardware.
• For closers that do not have a dead stop, you may need to utilize an overhead holder/stop to prevent a door from swinging past the required stop point.
