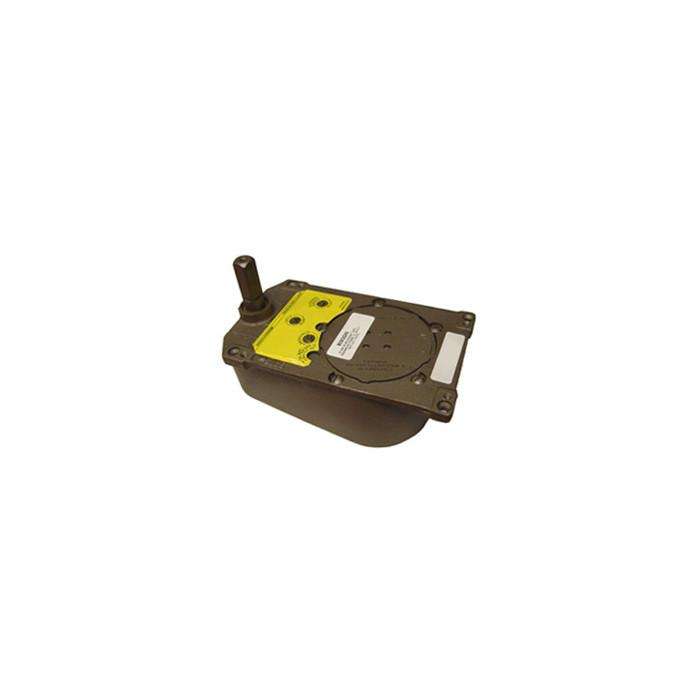

Description

Application:
Single Acting, Handed
Exterior or Interior Doors
Extra Heavy High Traffic Doors
Weight to 1000 lbs.
Sizes up to 4’0″ x 8’6″ * (1219 x 2591mm)

Product Description & Features:
LAP – Less All Parts
For high traffic or extra heavy doors (2″ min. thickness)
Additional thrust bearing for greater load capacity
Built-in positive dead stop prevents door from swinging beyond the desired opening degree (specify 90° or 105°)
Separate and independent valves for closing speed, latch speed and backcheck
Available non-hold open (N) or selective hold open (S) at same degree as dead stop
Models available to meet ICC/ANSI A117.1 low opening force requirements
Sealed closer option specify SC
Not allowed for fire rated doors
Frame stop required at header on lock side. If not supplied by frame manufacturer, recommend use of 60131
Furnished with wood and machine screws
Extended spindles available in 1/2″ increments up to 2″ longer than standard

Technical Information:
(Frame stop required at lock edge)
ANSI/C06061
* For doors taller than 8’6″use top pivot #H345 in lieu of H340
Pivot edge of door must be radiused
